Главная Инструменты 309-11 - System tool for OD grooving and parting SL-QFU-RH32C40-065A

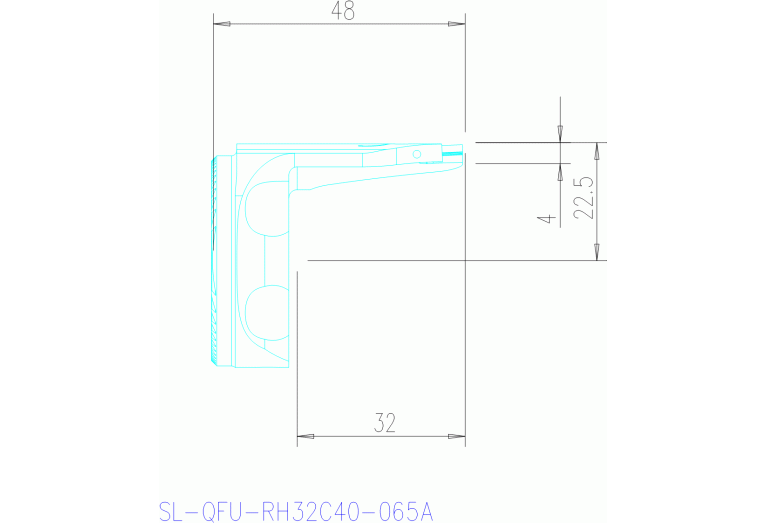

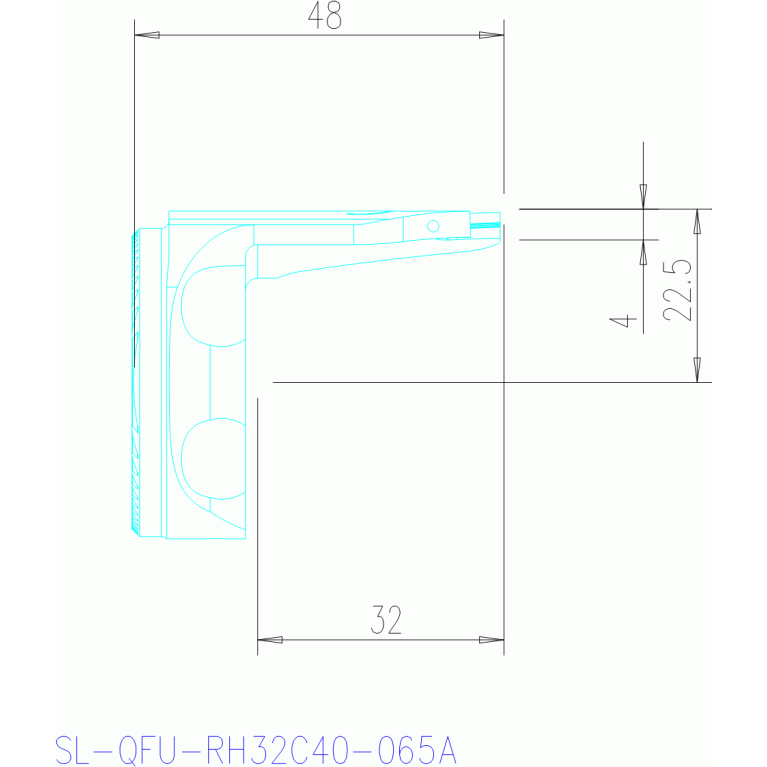

SL-QFU-RH32C40-065A

Артикул: 7192513

В наличии

0 ₽

В корзину

Описание

Характеристики

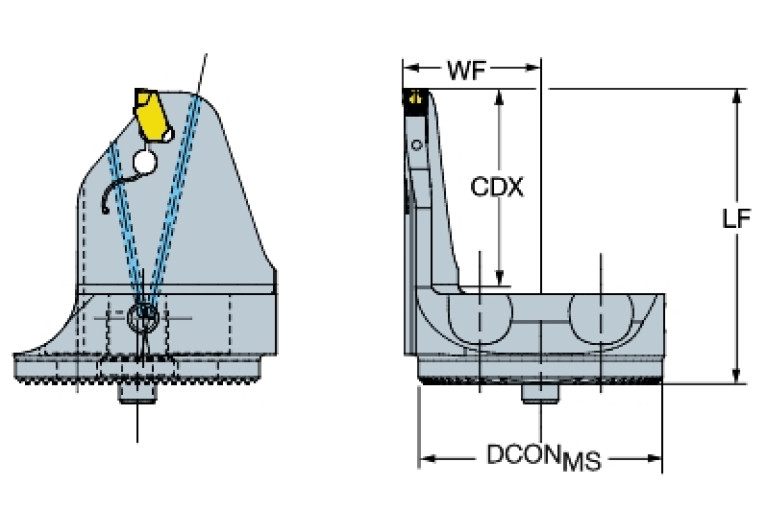

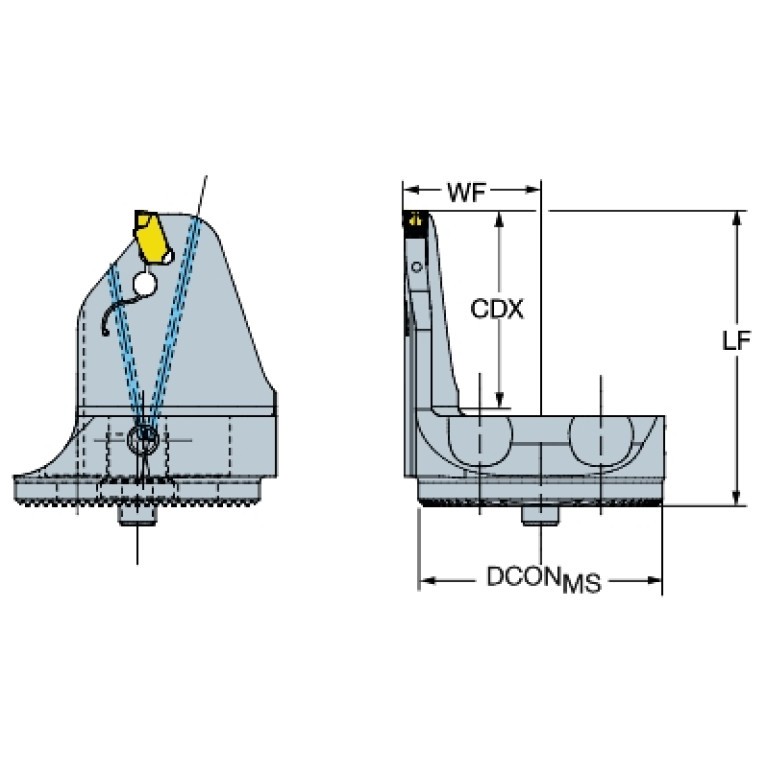

AXGSUP (Axial groove support direction)

BI (Block index)

CDX (Cutting depth maximum)

32 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CW (Cutting width)

4 mm

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DAXN (Axial groove od min)

73 mm

DAXX (Axial groove od max)

108 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CMS04000197

DIN CSW1

SV-CNH0G01U

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0.1 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CMS01C0400$$$$

ISO CSW1

SV$$CNH$G$40***1U49

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

46 mm

LOC-03 ISO

CMS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS04000197

LPR (Protruding length)

46 mm

LTA (Length tool assembly)

46 mm

MIID (Master insert identification)

QFU-H-0400-03-TF

OAL (Overall length)

51.5 mm

WF (Functional width)

22.5 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.124 kg
