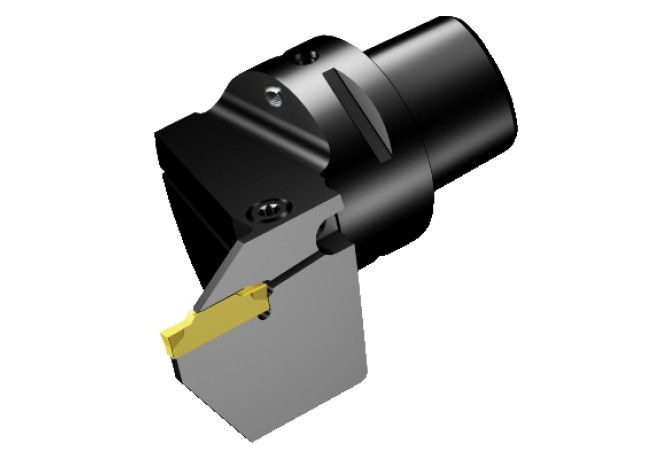

Главная Инструменты 309-11 - System tool for OD grooving and parting C3-RF123D08-22050B

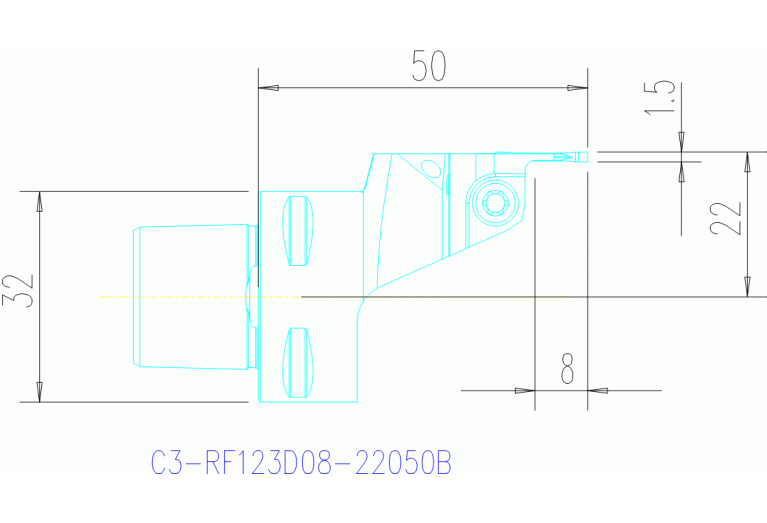

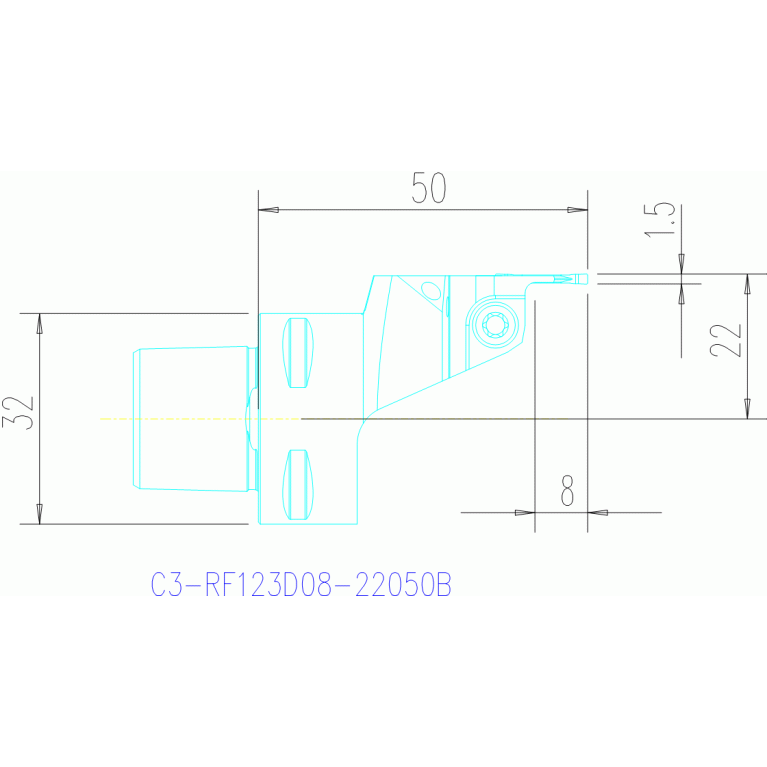

C3-RF123D08-22050B

Артикул: 5928096

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

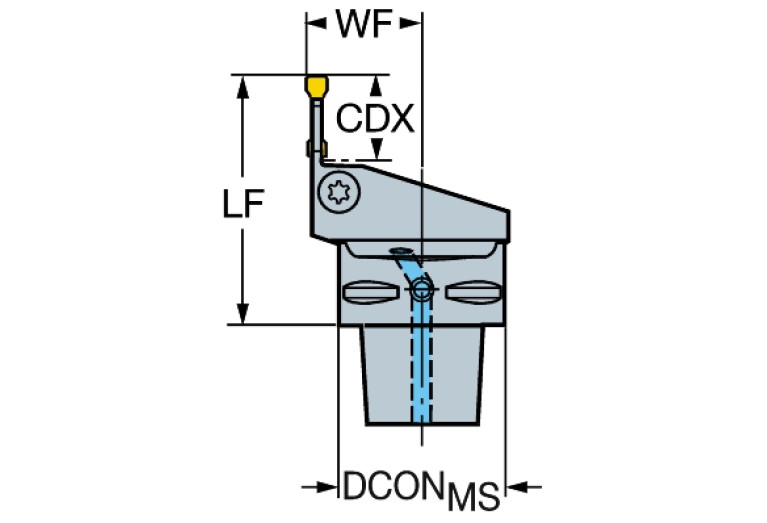

CDX (Cutting depth maximum)

8 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CW (Cutting width)

1.5 mm

CXSC (Coolant exit style code)

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS03200195

DIN CSW1

SV-CCD0D0*0

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0320$$$$

ISO CSW1

SV$$CCD$D$$$****$$$

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

50 mm

LOC-03 ISO

CCS01C0320$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS03200195

LPR (Protruding length)

50 mm

LTA (Length tool assembly)

50 mm

MIID (Master insert identification)

N123D2-0150-0002-CM

OAL (Overall length)

69 mm

WF (Functional width)

21.25 mm

Working process

DAA - Parting,DEA - Outer diameter grooving,DFA - External form turning,DPA - Profiling external,DSS - Face grooving

WT (Weight of item)

0.221 kg
