Главная Инструменты 309-11 - System tool for OD grooving and parting C2A-CC5-RFK18B-220CB

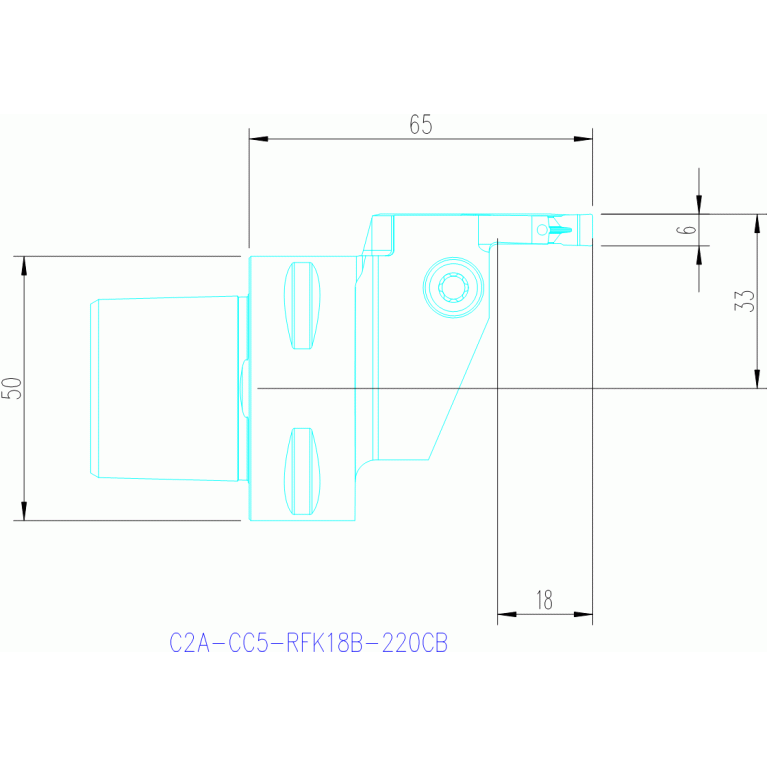

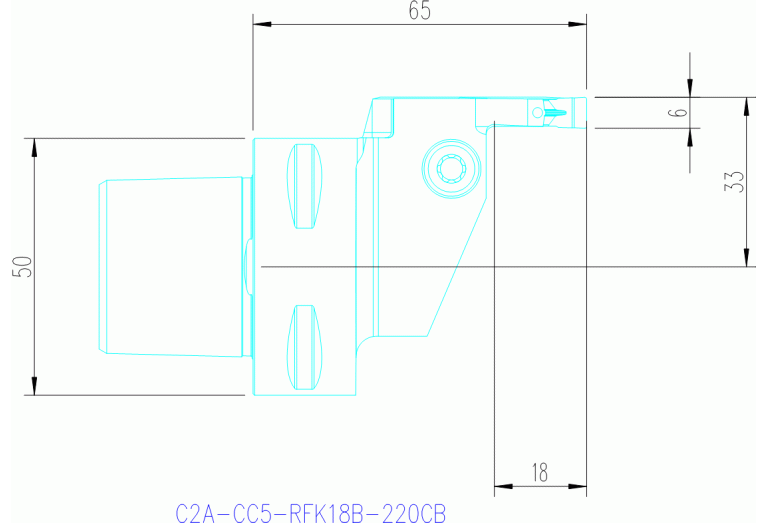

C2A-CC5-RFK18B-220CB

Артикул: 8381883

В наличии

0 ₽

В корзину

Описание

Характеристики

AXGSUP (Axial groove support direction)

BI (Block index)

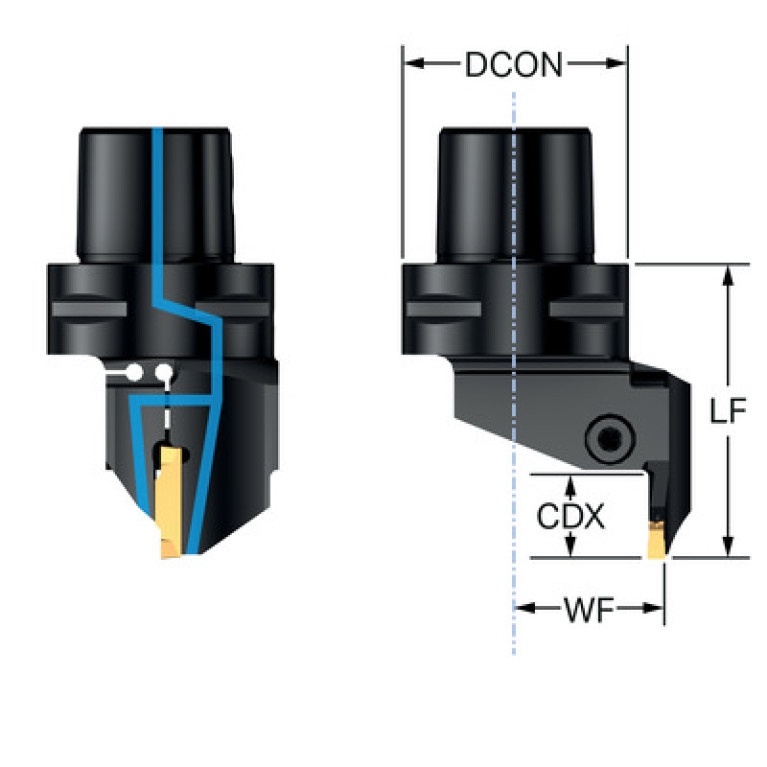

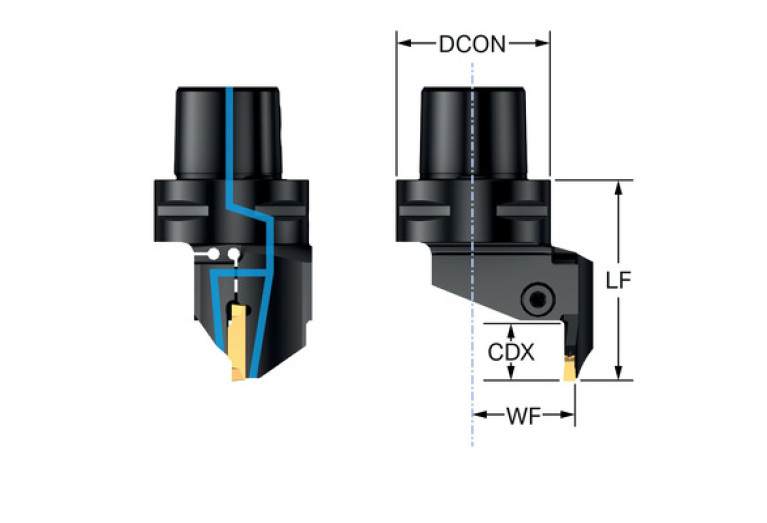

CDX (Cutting depth maximum)

18 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CW (Cutting width)

6 mm

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DAXN (Axial groove od min)

232 mm

DAXX (Axial groove od max)

1000 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS05000195

DIN CSW1

SV-CCK0H0*0

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0500$$$$

ISO CSW1

SV$$CCK$H$$$9***$$$

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

62 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR (Protruding length)

62 mm

LTA (Length tool assembly)

62 mm

MIID (Master insert identification)

C2I-K2N-0600-

OAL (Overall length)

95 mm

WF (Functional width)

33 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.687 kg
