Главная Инструменты 309-11 - System tool for OD grooving and parting 570-40L123T06B

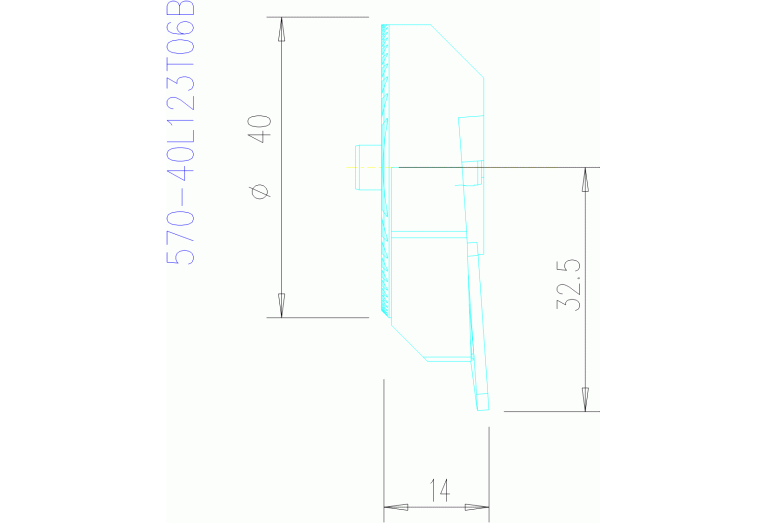

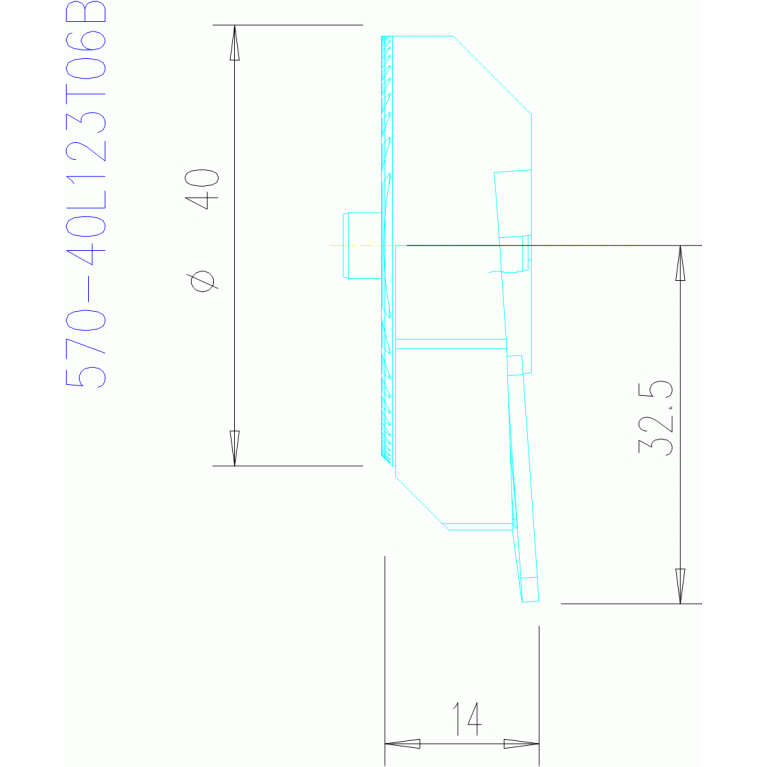

570-40L123T06B

570-40L123T06B 570-40L123T06B 570-40L123T06B 570-40L123T06B

570-40L123T06B

SV - Sandvik-Coromant
Артикул: 5765160
В наличии
0 ₽
В корзину
Описание
Характеристики
BI (Block index)
1

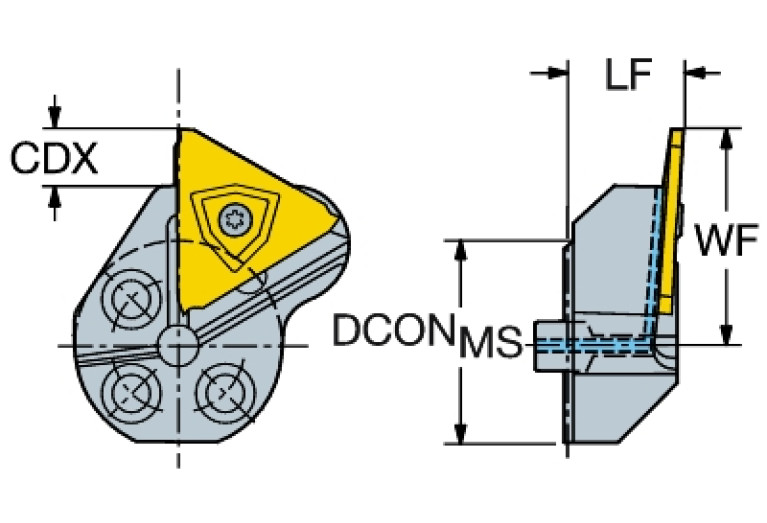

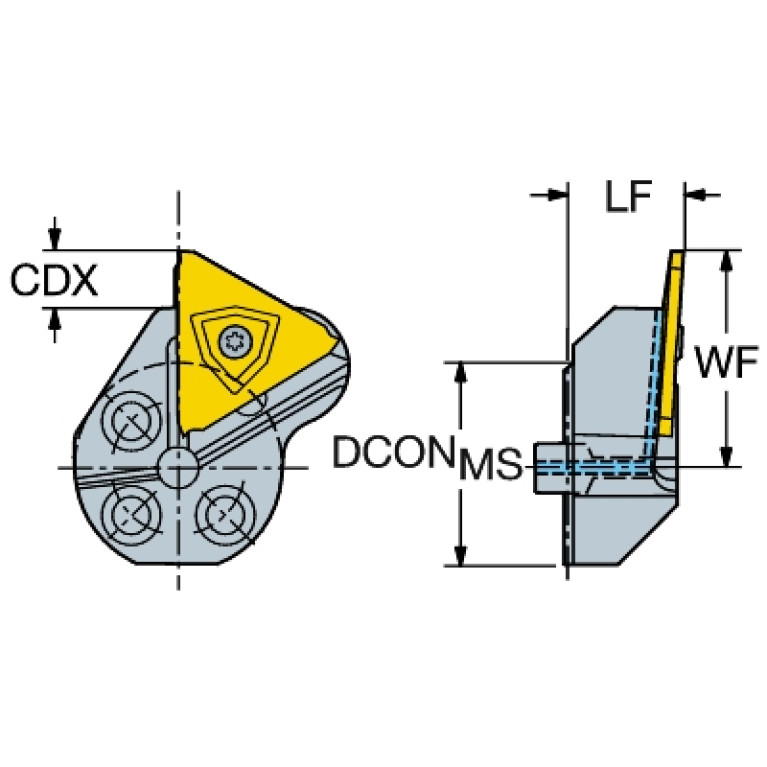

CDX (Cutting depth maximum)
6.35 mm
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CW (Cutting width)
1.5 mm
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CMS04000197
DIN CSW1
SV-CDT00000
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CMS01C0400$$$$
ISO CSW1
SV$$CDT$$$$$3**$$$$
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
14 mm
LOC-03 ISO
CMS01C0400$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
7 Serrated connection
LOC-03 (CCTMS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CMS04000197
LPR (Protruding length)
14 mm
LTA (Length tool assembly)
14 mm
MIID (Master insert identification)
N123T3-0150-CM
OAL (Overall length)
17.8 mm
WF (Functional width)
31.75 mm
Working process
DAA - Parting,DEA - Outer diameter grooving,DFA - External form turning,DPA - Profiling external,DSS - Face grooving
WT (Weight of item)
0.105 kg
