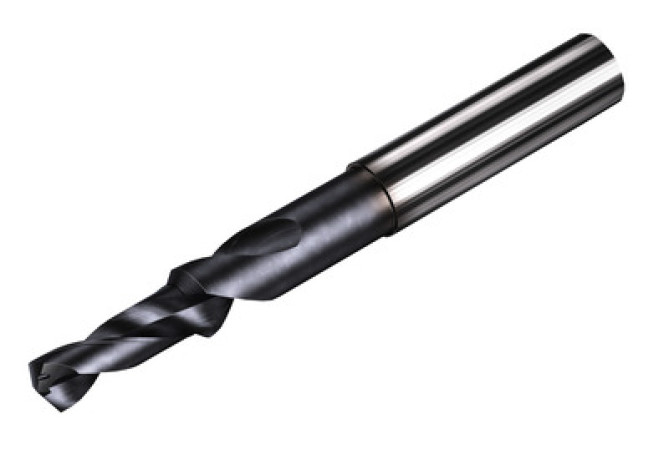

Главная Инструменты 302-02 - Step drill 460.2-0465-014A1-XM GC34

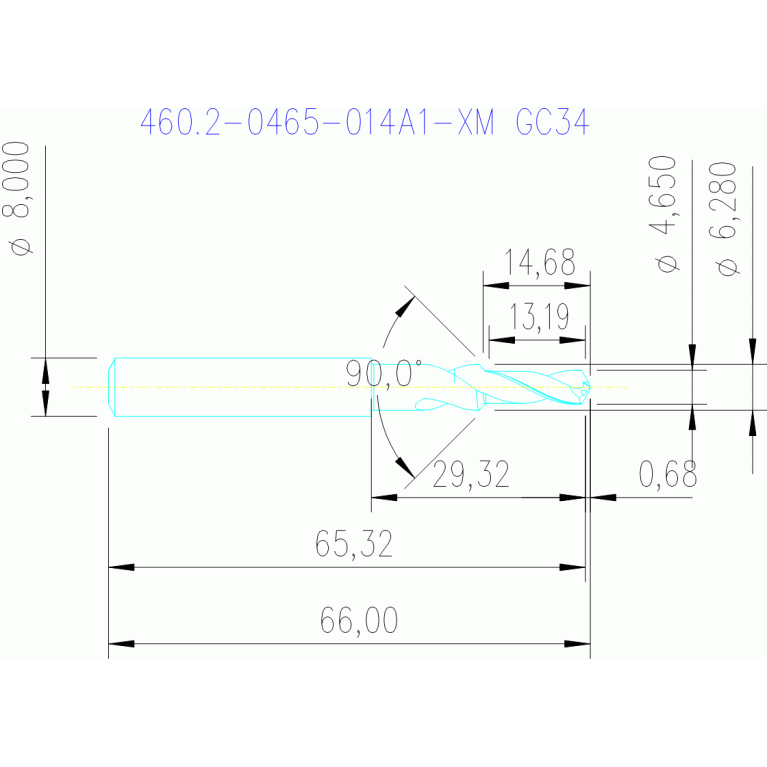

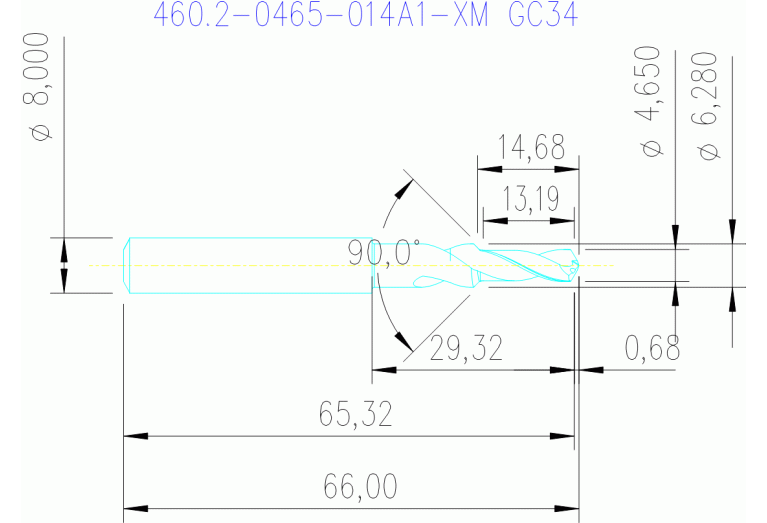

460.2-0465-014A1-XM GC34

Артикул: 6762644

В наличии

0 ₽

В корзину

Описание

Характеристики

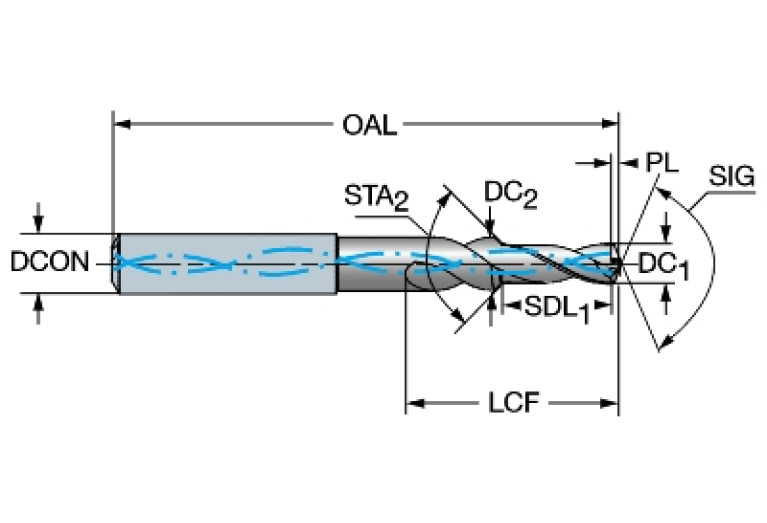

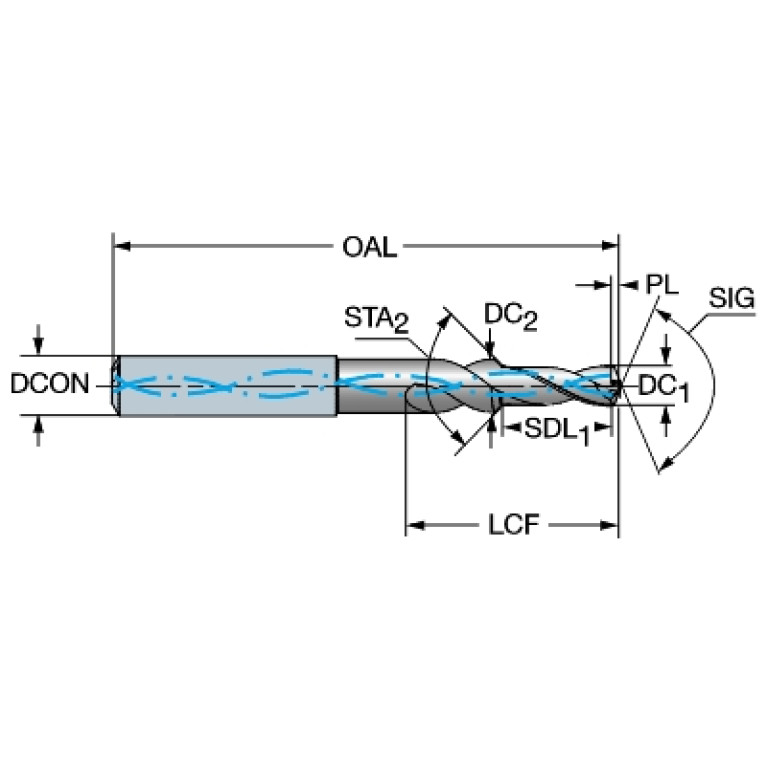

BMC (Body material code)

H - Solid carbide

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

4 - With Coolant entry, axial on hole circle

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

4 - With Coolant exit, axial on hole circle

CXSC (Coolant exit style code) / Тип подвода СОЖ

4 - With Coolant exit, axial on hole circle

DC (Cutting diameter minimum)

4.65 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00800115

FHA (Flute helix angle)

18.6 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

GC34

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01F8000h$06

LCF (Length chip flute)

26 mm

LF (Functional length)

78.3 mm

LOC-03 ISO

ZYL01F8000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0080

LOC-03 (DCONMS Diameter)

8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR (Protruding length)

43 mm

LS (Shank length)

36 mm

LU (Usable length)

14.7 mm

NOF (Flute count)

NOS (Step count)

OAL (Overall length)

79 mm

PL (Point length)

0.7 mm

RPMX (Rotational speed maximum)

20536 1/min

SDL (Step diameter length)

13.2 mm

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.043 kg
