Главная Инструменты 302-01 - Twist Drill 462.1-1190-082A0-XM H10F

462.1-1190-082A0-XM H10F

Артикул: 8172233

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

H - Solid carbide

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

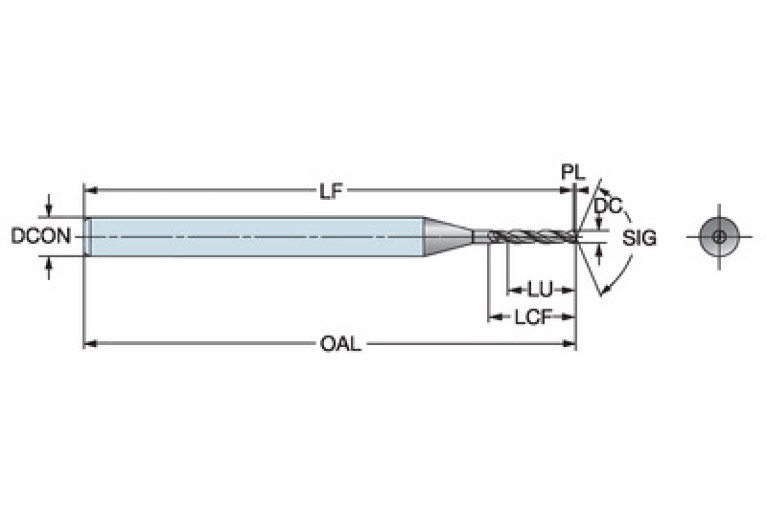

DC (Cutting diameter minimum)

1.19 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00300105

FHA (Flute helix angle)

35 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

H10F

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01F3000h$06

LCF (Length chip flute)

10 mm

LF (Functional length)

37.72 mm

LOC-03 ISO

ZYL01F3000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0030

LOC-03 (DCONMS Diameter)

3 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR (Protruding length)

13.377 mm

LS (Shank length)

28 mm

LU (Usable length)

8.2 mm

Materials

P,M,K,N,S,O

NOF (Flute count)

OAL (Overall length)

38 mm

PL (Point length)

0.277 mm

RPMX (Rotational speed maximum)

17387 1/min

SIG (Point angle 1st step)

130 Degree

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.005 kg
