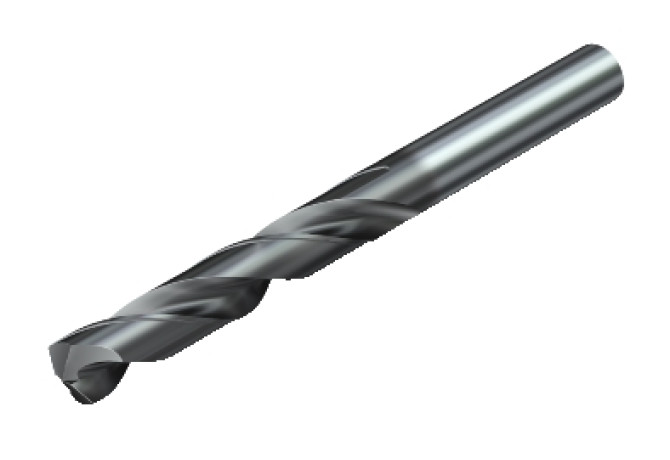

Главная Инструменты 302-01 - Twist Drill 460.1-1508-045A0-XM GC34

460.1-1508-045A0-XM GC34

Артикул: 6241481

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

H - Solid carbide

CCONMS (Connection count machine side)

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

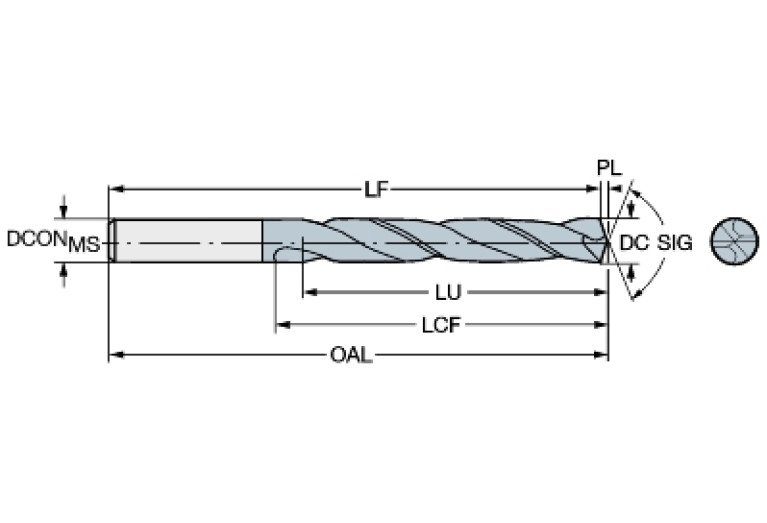

DC (Cutting diameter minimum)

15.08 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL01600105

FHA (Flute helix angle)

28.544 Degree

FHH (Flute helix hand)

R - Hand of helix right

GRDMFG (Grade manufacturers designation)

GC34

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

LCF (Length chip flute)

65 mm

LF (Functional length)

112.8 mm

LOC-03 ISO

ZYL01G1600h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0160

LOC-03 (DCONMS Diameter)

16 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR (Protruding length)

66.95 mm

LS (Shank length)

48 mm

LU (Usable length)

47.5 mm

Materials

P,M,K,N,S,H

NOF (Flute count)

OAL (Overall length)

115 mm

PL (Point length)

2.2 mm

RPMX (Rotational speed maximum)

5277 1/min

TCDCONMS (ISO-tolerance class shank diameter)

Working process

BVB - Drilling

WT (Weight of item)

0.265 kg
