WPMT 02 01 02-PF 1515

Артикул: 5757141

В наличии

0 ₽

В корзину

Описание

Характеристики

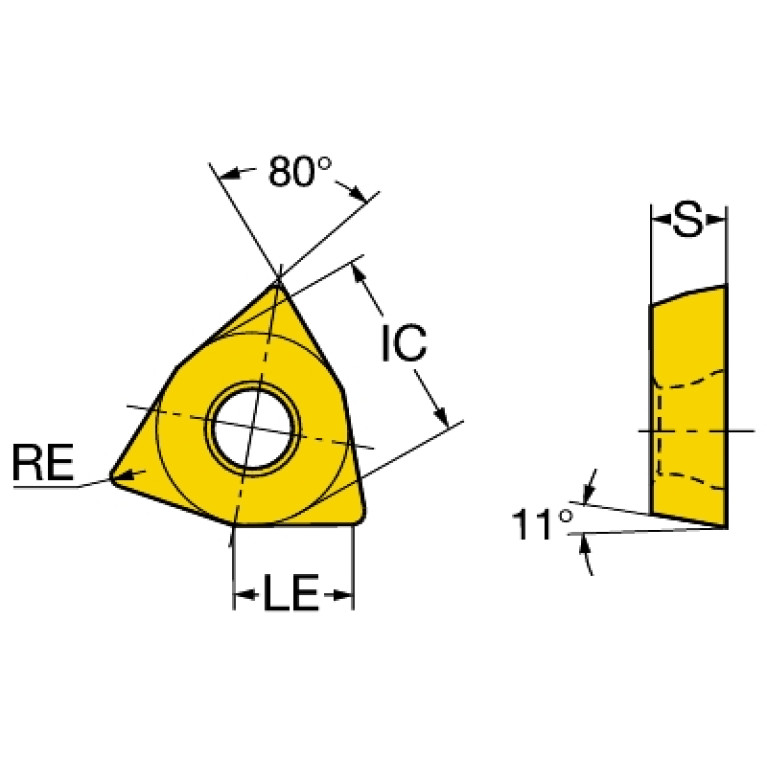

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

2.2 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

WP0201023N

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

1515

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

3.969 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$WP0201023NB$$02

L (Cutting edge length)

2.606 mm

LE (Cutting edge effective length)

2.406 mm

LOC-03 ISO

ISO$WP0201023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WP0201023N

Materials

P,M

MIID (Master insert identification)

WPMT020102 1515

NOI (Insert index count)

RE (Corner radius)

0.2 mm

S (Insert thickness)

1.588 mm

S1 (Insert thickness total)

1.588 mm

STDDES (Standard designation)

WPMT020102

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available
