Главная Инструменты 201-07 - Trigon insert WNMX 15 09 31-MM 4235

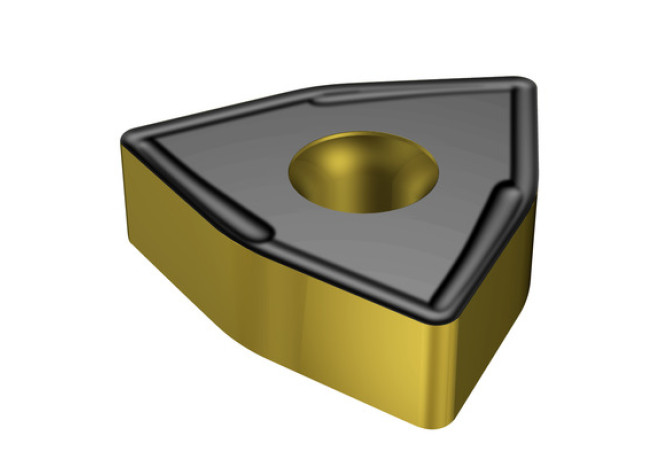

WNMX 15 09 31-MM 4235

WNMX 15 09 31-MM 4235 WNMX 15 09 31-MM 4235 WNMX 15 09 31-MM 4235

WNMX 15 09 31-MM 4235

SV - Sandvik-Coromant
Артикул: 5757028
В наличии
0 ₽
В корзину
Описание
Характеристики
AN (Clearance angle major)
0 Degree
BS (Wiper edge length)
5.3 mm
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
MM
CECC (Cutting edge condition code)
E - Rounded
CHW (Corner chamfer width)
11 mm
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
7.93 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
WN1509003L
EPSR (Insert included angle)
80 Degree
GRDMFG (Grade manufacturers designation)
4235
GRDPRIO (Standard designation of the grade main application)
HC

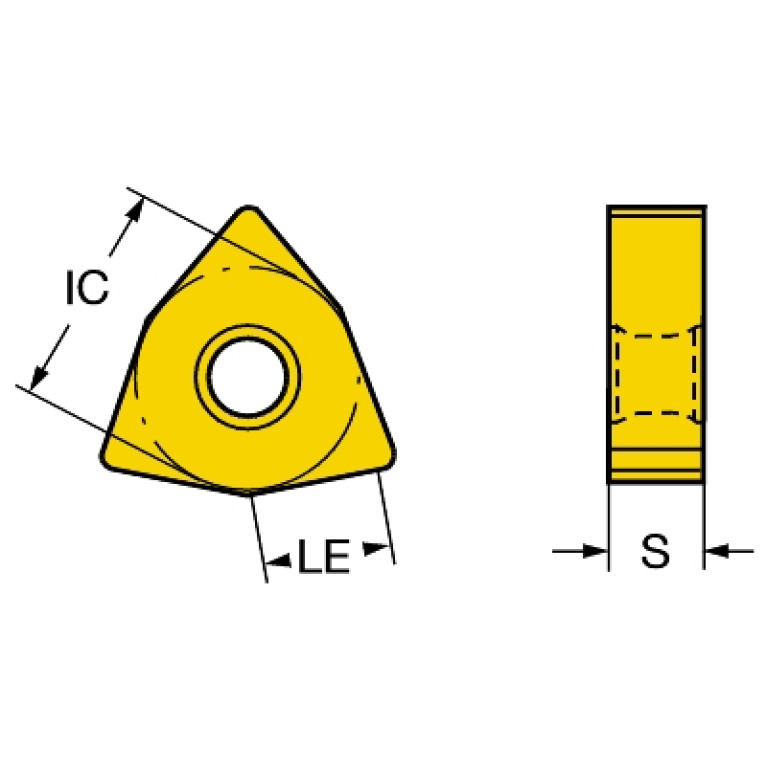

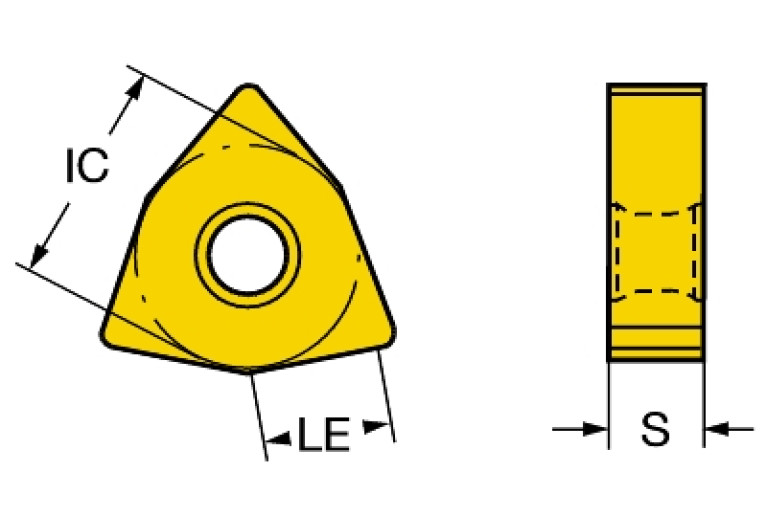

IC (Inscribed circle diameter)
22.225 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
L - Left
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$WN1509003LB$$00
KCH (Corner chamfer angle)
100 Degree
KRINS (Cutting edge angle major)
120 Degree
L (Cutting edge length)
15.203 mm
LE (Cutting edge effective length)
13 mm
LOC-03 ISO
ISO$WN1509003LB$$00
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN1509003L
MIID (Master insert identification)
WNMX150931 4235
NOI (Insert index count)
3
RE (Corner radius)
11 mm
S (Insert thickness)
9.525 mm
S1 (Insert thickness total)
9.525 mm
STDDES (Standard designation)
WNMX150931
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.06 kg
