Главная Инструменты 201-07 - Trigon insert WNMG 08 04 08-WMX 4305

WNMG 08 04 08-WMX 4305

Артикул: 6707486

В наличии

0 ₽

В корзину

Описание

Характеристики

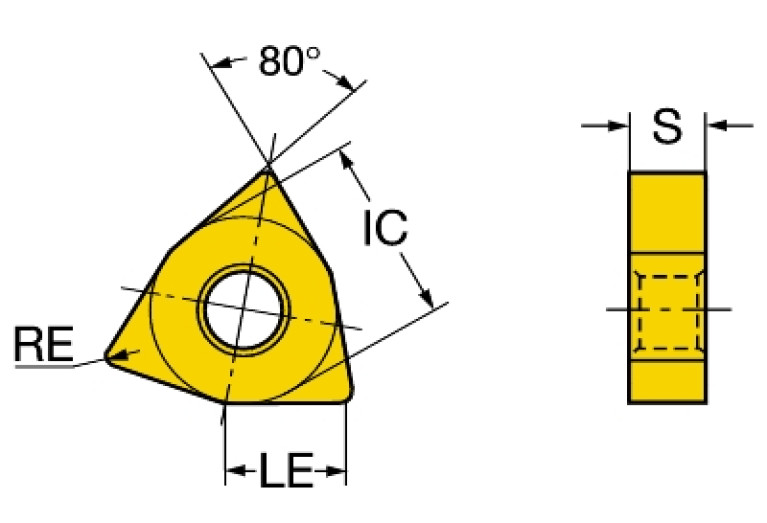

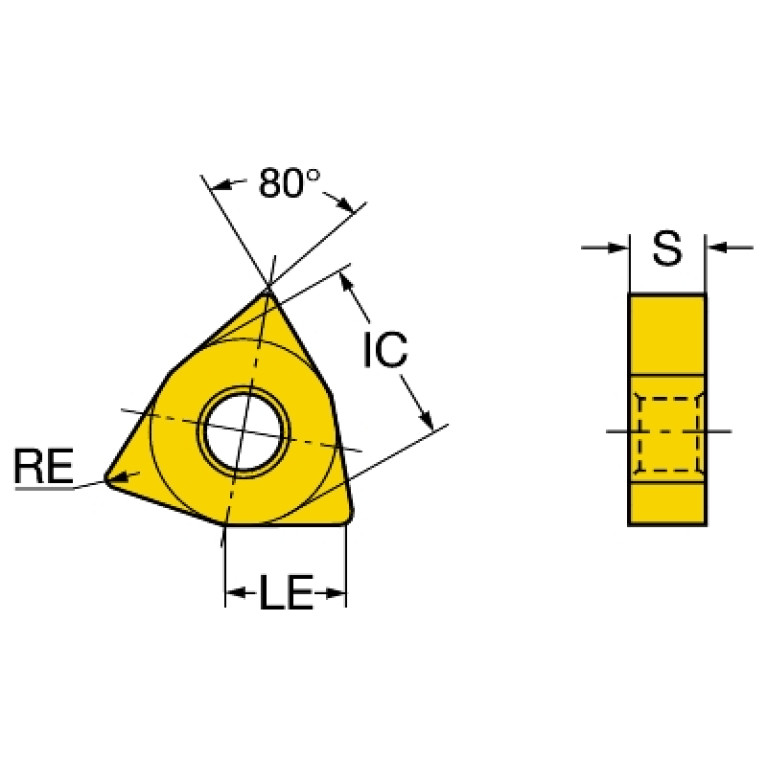

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

0.7 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

WMX

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

5.156 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

WN0804082N

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

4305

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$WN0804082NB$$08

KRINS (Cutting edge angle major)

95 Degree

L (Cutting edge length)

8.687 mm

LE (Cutting edge effective length)

7.887 mm

LOC-03 ISO

ISO$WN0804082NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804082N

Materials

P,K

MIID (Master insert identification)

WNMG080408 4305

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

WNMG080408

STDDESAnsi (Standard designation ANSI)

WNMG432

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.01 kg
