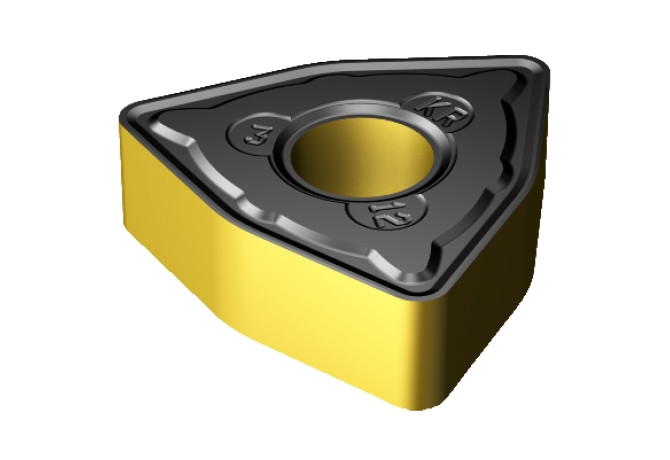

WNMG 06 04 12-KR 3225
WNMG 06 04 12-KR 3225
Артикул:
6868575
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
KR
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
3.81 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
WN0604122N

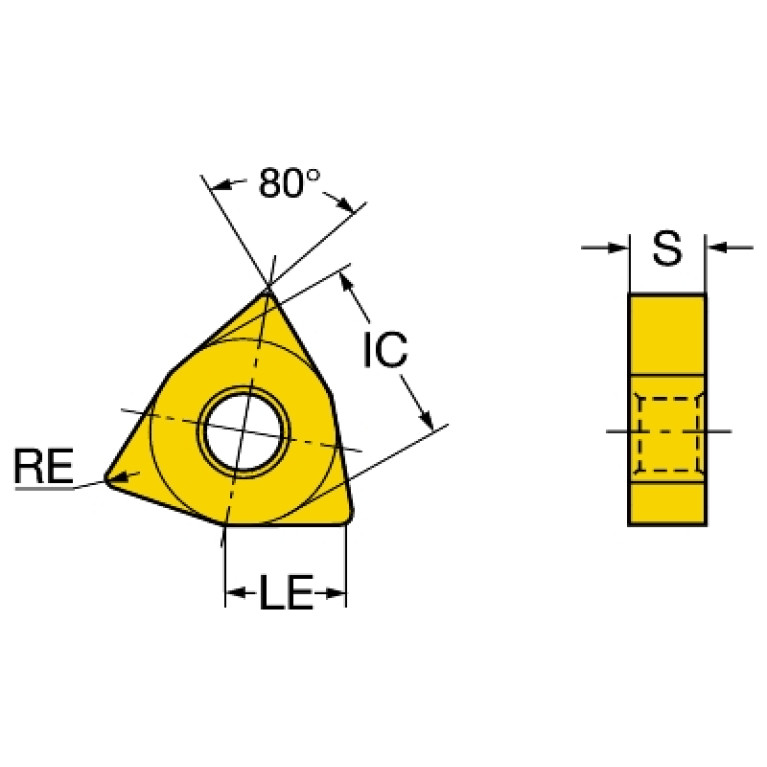

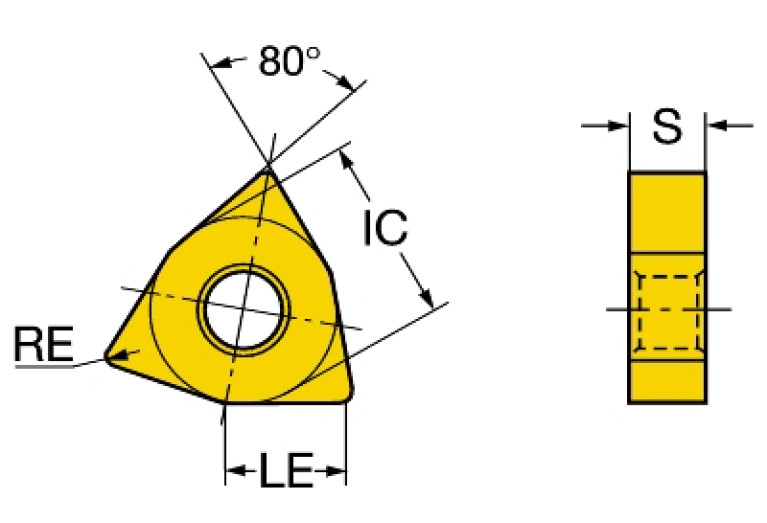

EPSR (Insert included angle)
80 Degree
GRDMFG (Grade manufacturers designation)
3225
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$WN0604122NB$$12
L (Cutting edge length)
6.516 mm
LE (Cutting edge effective length)
5.316 mm
LOC-03 ISO
ISO$WN0604122NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0604122N
Materials
K
MIID (Master insert identification)
WNMG060412 3225
NOI (Insert index count)
6
RE (Corner radius)
1.191 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
WNMG060412
STDDESAnsi (Standard designation ANSI)
WNMG333
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.006 kg
