Главная Инструменты 201-07 - Trigon insert WNGG 08 04 04-SGF S05F

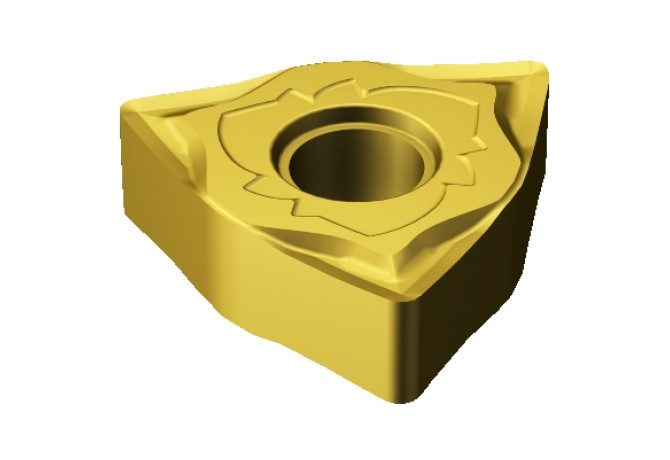

WNGG 08 04 04-SGF S05F

Артикул: 5909099

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

SGF

CECC (Cutting edge condition code)

F - Sharpedged

COATN (Coating)

CVD TiCrN+Al2O3+TiN

D1 (Fixing hole diameter)

5.156 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

WN0804042N

EPSR (Insert included angle)

80 Degree

GRDMFG (Grade manufacturers designation)

S05F

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$WN0804042NB$$04

L (Cutting edge length)

8.687 mm

LE (Cutting edge effective length)

3.2 mm

LOC-03 ISO

ISO$WN0804042NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804042N

Materials

MIID (Master insert identification)

WNGG080404 S05F

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

WNGG080404

STDDESAnsi (Standard designation ANSI)

WNGG431

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.01 kg
