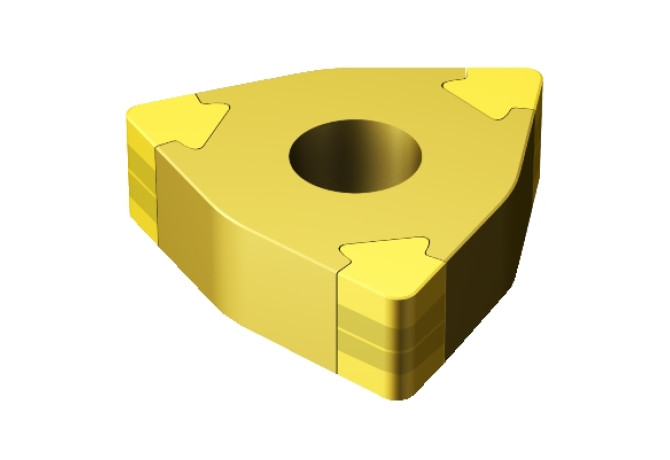

Главная Инструменты 201-07 - Trigon insert WNGA080408T01020BWG 7525

WNGA080408T01020BWG 7525

Артикул: 5908131

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.1 mm

BS (Wiper edge length)

1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

T - Chamfered

COATN (Coating)

PVD TiN

D1 (Fixing hole diameter)

5.156 mm

Delivery state valid from

12/1/2023

DIN

WN0804082N

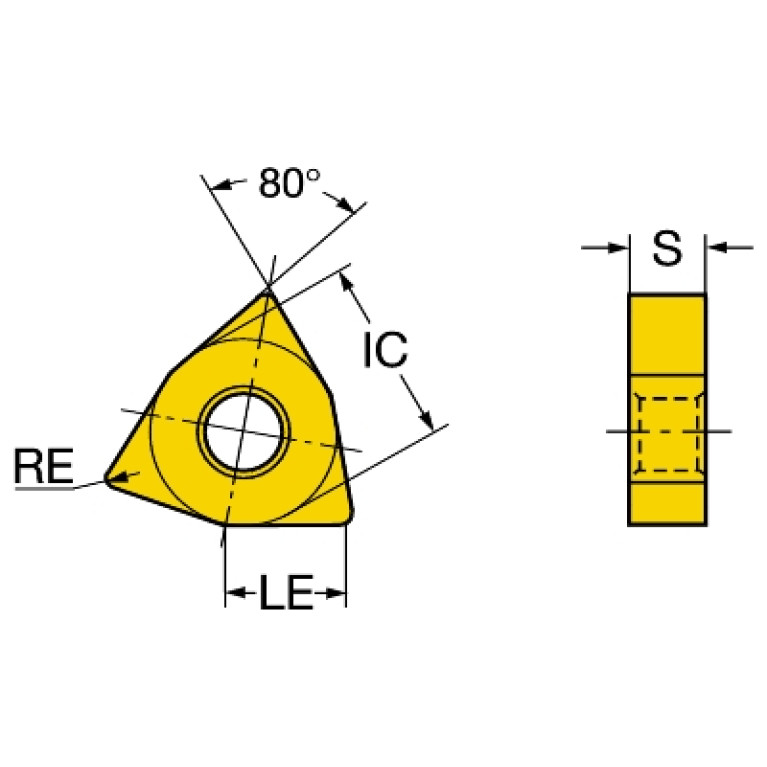

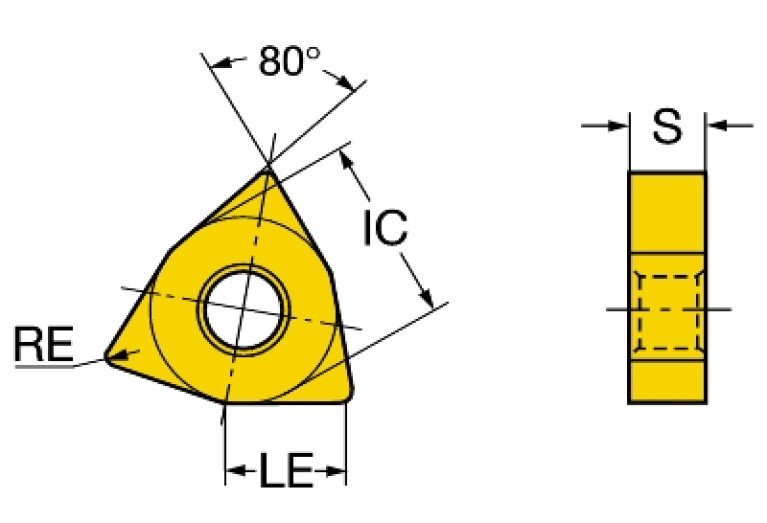

EPSR (Insert included angle)

80 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

7525

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$WN0804082NA$$08

KRINS (Cutting edge angle major)

95 Degree

L (Cutting edge length)

8.687 mm

LE (Cutting edge effective length)

3 mm

LOC-03 ISO

ISO$WN0804082NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804082N

Materials

K,H

MIID (Master insert identification)

WNGA080408 7525

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

WNGA080408

STDDESAnsi (Standard designation ANSI)

WNGA432

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.009 kg
