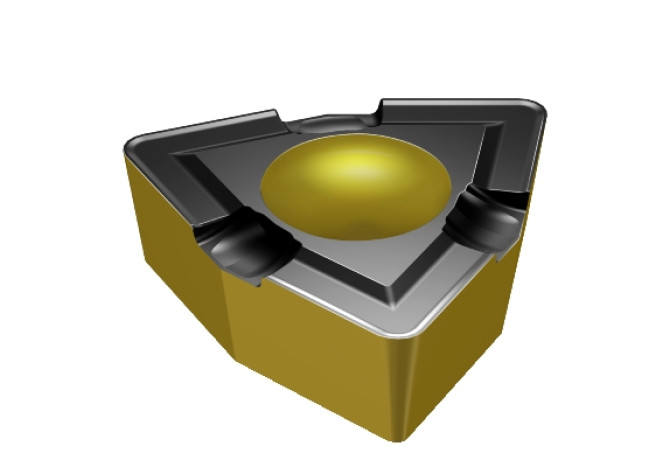

Главная Инструменты 201-07 - Trigon insert WCMX 08 04 12-GM 4125

WCMX 08 04 12-GM 4125

Артикул: 6251741

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiN

D1 (Fixing hole diameter)

4.3 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

WC0804123N

EPSR (Insert included angle)

80 Degree

GAN (Insert rake angle)

18 Degree

GRDMFG (Grade manufacturers designation)

4125

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$WC0804123NA$$12

L (Cutting edge length)

8.687 mm

LOC-03 ISO

ISO$WC0804123NA$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0804123N

Materials

P,K

MIID (Master insert identification)

WCMX080412 4125

NOI (Insert index count)

RE (Corner radius)

1.2 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

WCMX080412

STDDESAnsi (Standard designation ANSI)

WCMX433

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.01 kg
