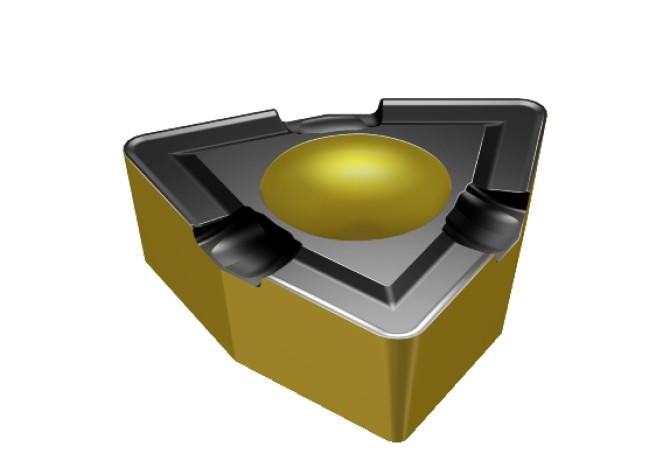

WCMX 06 T3 08-GM 4235

Артикул: 6251732

В наличии

0 ₽

В корзину

Описание

Характеристики

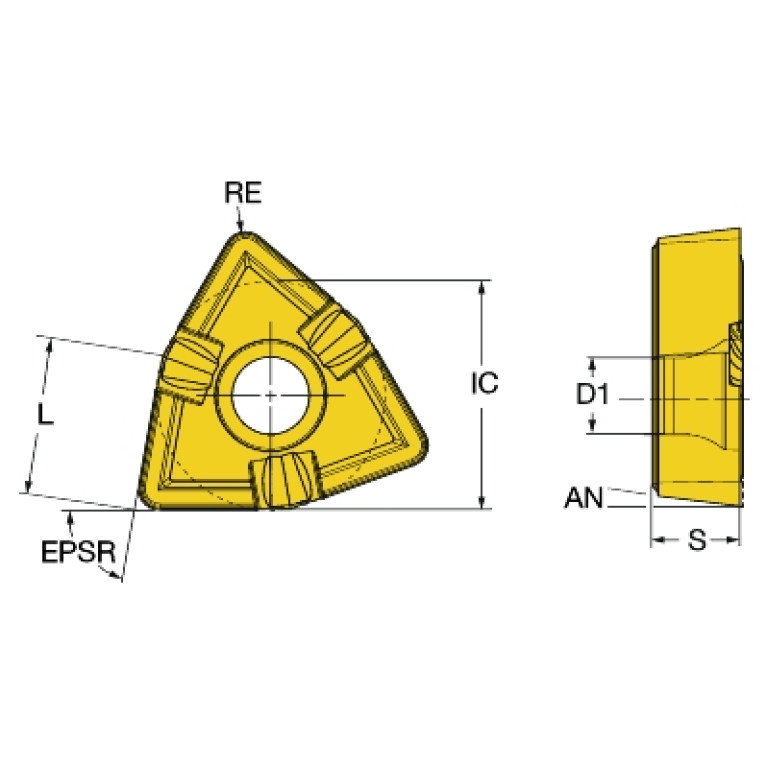

AN (Clearance angle major)

7 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

3.7 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

WC06T3083N

EPSR (Insert included angle)

80 Degree

GAN (Insert rake angle)

18 Degree

GRDMFG (Grade manufacturers designation)

4235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$WC06T3083NA$$08

L (Cutting edge length)

6.516 mm

LOC-03 ISO

ISO$WC06T3083NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC06T3083N

Materials

P,M,K,N

MIID (Master insert identification)

WCMX06T308 4235

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

STDDES (Standard designation)

WCMX06T308

STDDESAnsi (Standard designation ANSI)

WCMX32.52

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.004 kg
