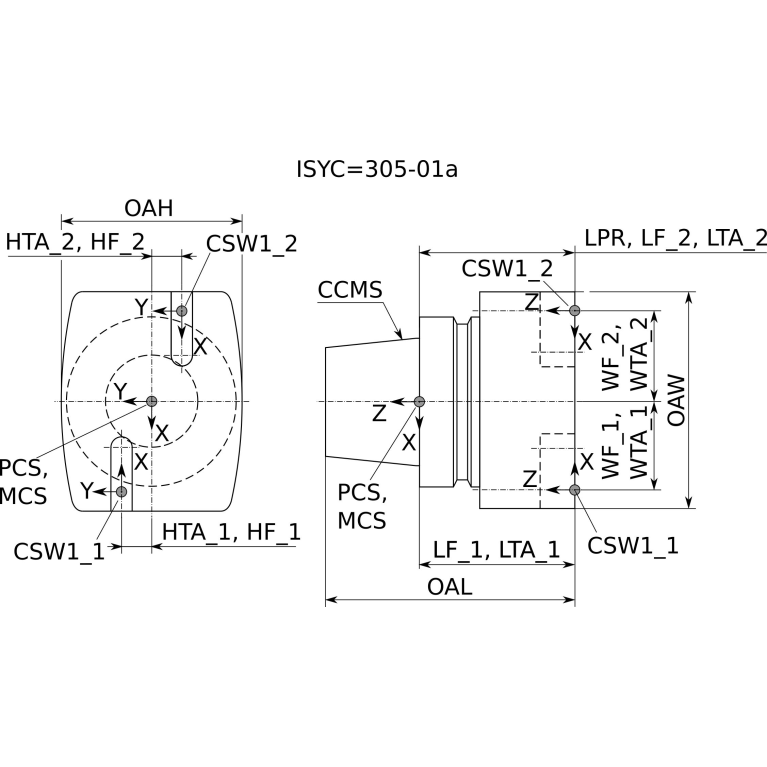

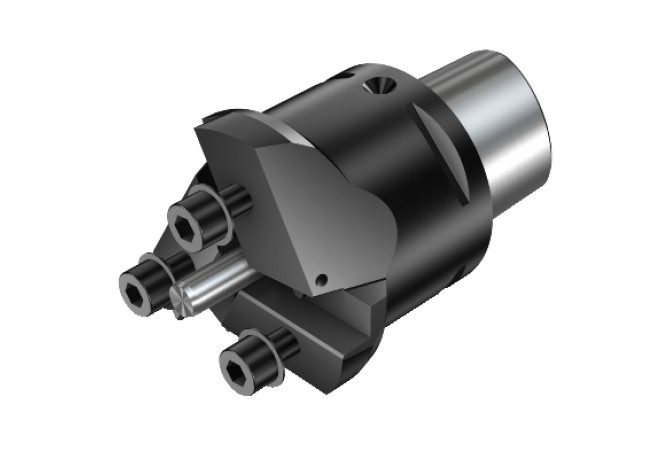

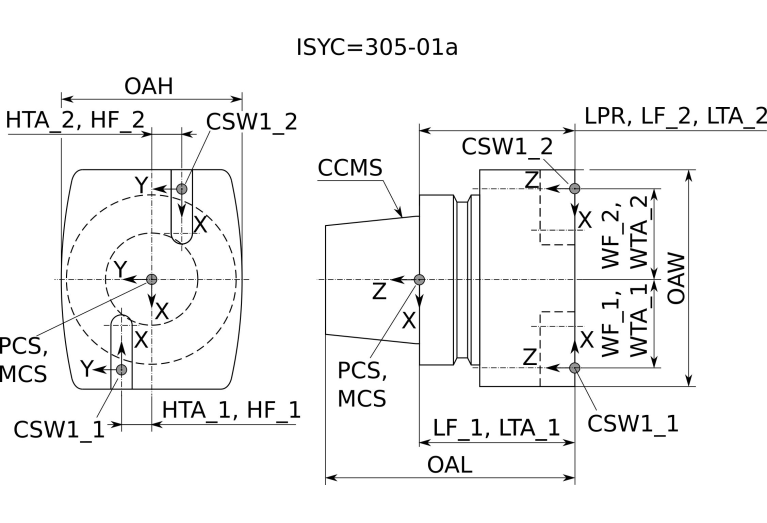

Главная Инструменты 305-01 - Monoblock extension bridges with adaptor C4-R820B-AA3044B

C4-R820B-AA3044B

Артикул: 7254650

В наличии

0 ₽

В корзину

Описание

Характеристики

ADJBY (Adjustment property)

0 - Adjustment not possible

BDX (Body diameter maximum)

39.6 mm

BMC (Body material code)

S - Solid steel

CCFWS (Connection code form)

CCSWS (Connection code style)

CCTWS (Connection code type)

CCB

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

CZCWS (Connection size code)

0020

Delivery state valid from

12/1/2023

DIN

CCS04000195

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CCS01C0400$$$$

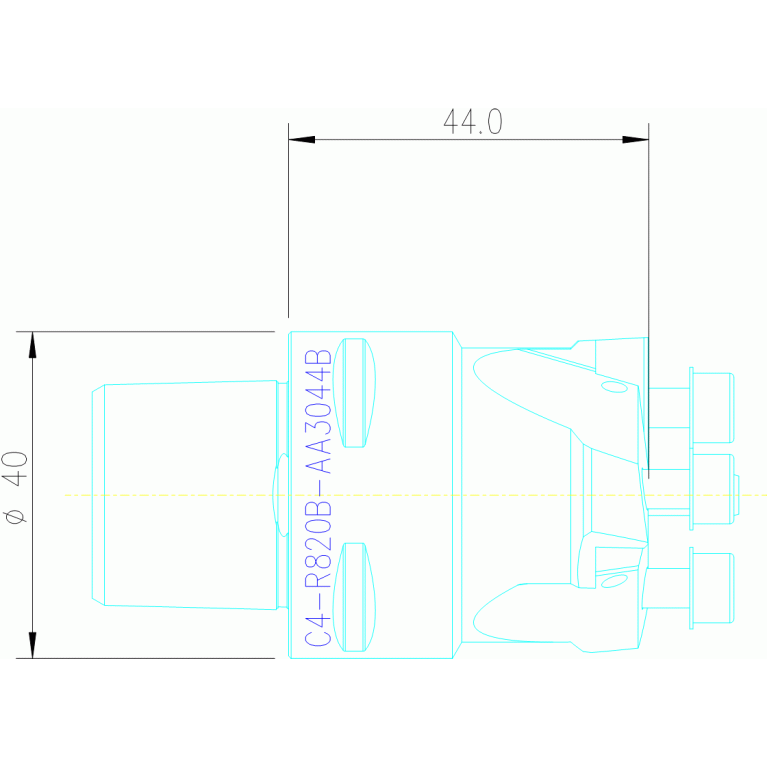

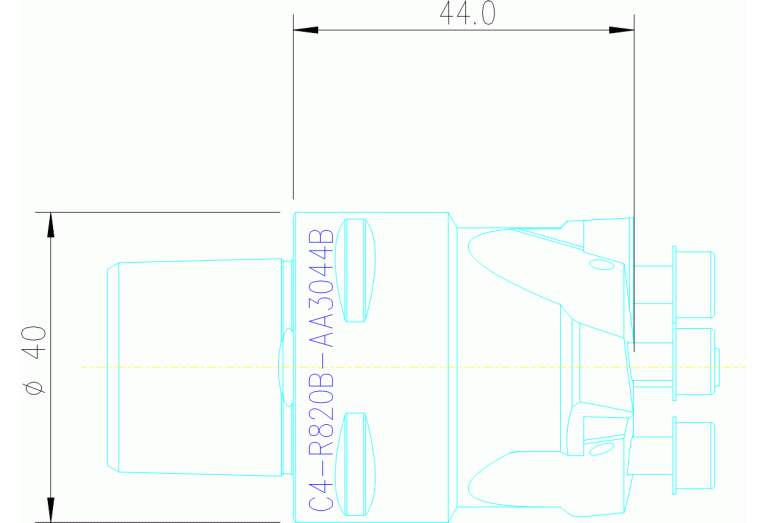

LF (Functional length)

44 mm

LOC-01 ISO

CCB01C0020****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-01 (CCTWS Connection code type)

CCB Coromant CoroBore SANDVIK

LOC-01 (CCUWS Connection code unit base)

9 non-dimensional size with coolant

LOC-01 (CZCWS Connection size code)

0020

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCB00200195

LOC-03 ISO

CCS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

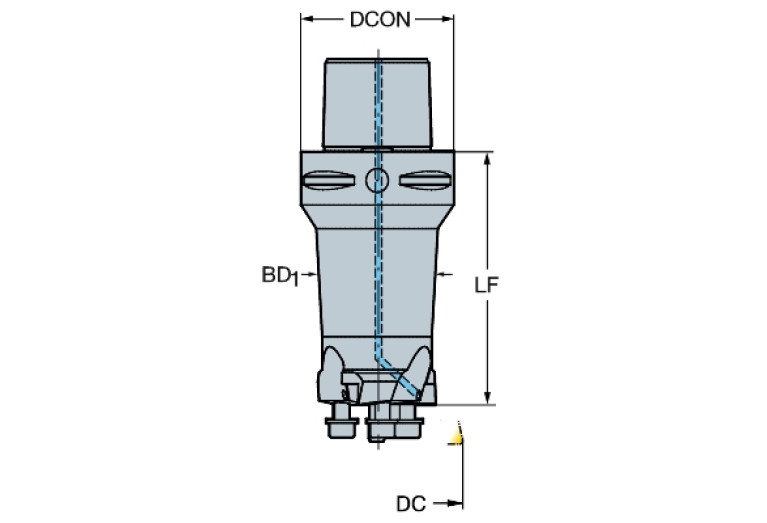

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

OAL (Overall length)

79 mm

Working process

BAB - Open by boring

WT (Weight of item)

0.411 kg
