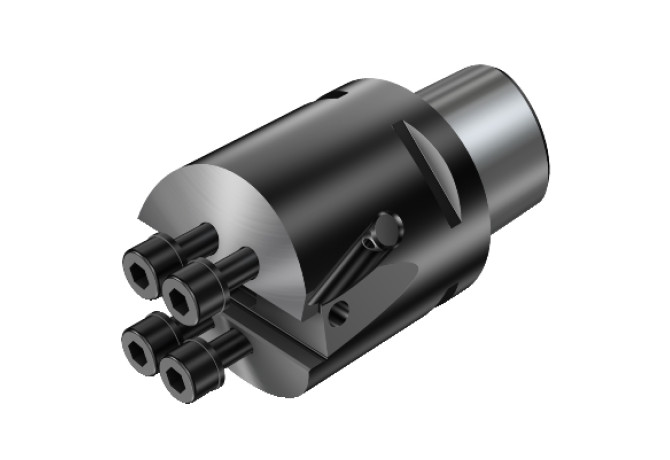

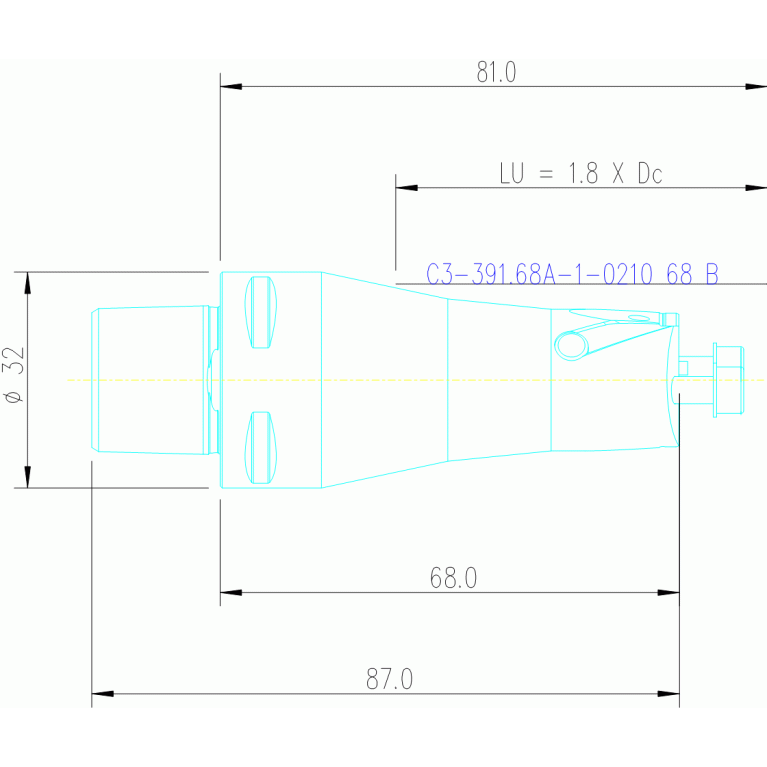

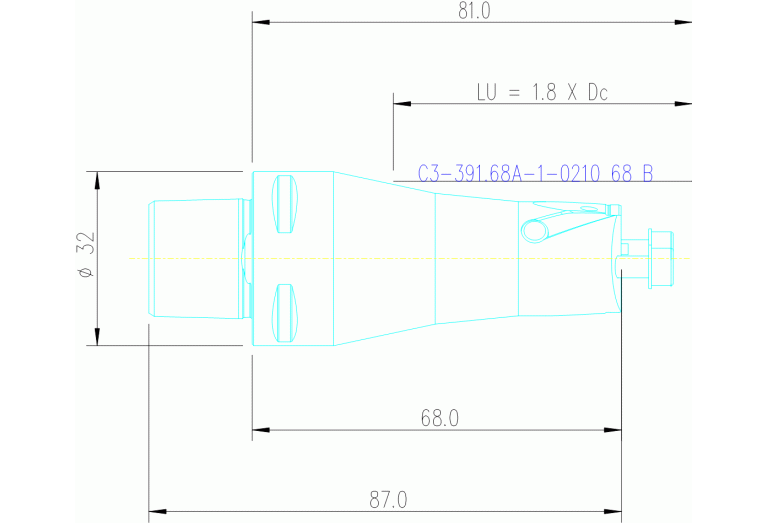

C3-391.68A-1-021068B
C3-391.68A-1-021068B
Артикул:
5726985
В наличии
0 ₽
Характеристики
ADJBY (Adjustment property)
0 - Adjustment not possible
BDX (Body diameter maximum)
21 mm
BMC (Body material code)
S - Solid steel
CCFWS (Connection code form)
01
CCSWS (Connection code style)
5
CCTWS (Connection code type)
CDB
CCUWS (Connection code unit base)
9
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
CZCWS (Connection size code)
0210
Delivery state valid from
12/1/2023
DIN
CCS03200195
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
CCS01C0320$$$$
LF (Functional length)
68 mm
LOC-01 ISO
CDB01C0210****
LOC-01 (CCFWS Connection code form)
01
LOC-01 (CCSWS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-01 (CCTWS Connection code type)
CDB Coromant DuoBore SANDVIK
LOC-01 (CCUWS Connection code unit base)
9 non-dimensional size with coolant
LOC-01 (CZCWS Connection size code)
0210
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CDB02100195
LOC-03 ISO
CCS01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03 (DCONMS Diameter)
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
OAL (Overall length)
87 mm
Working process
BAB - Open by boring
WT (Weight of item)
0.31 kg
