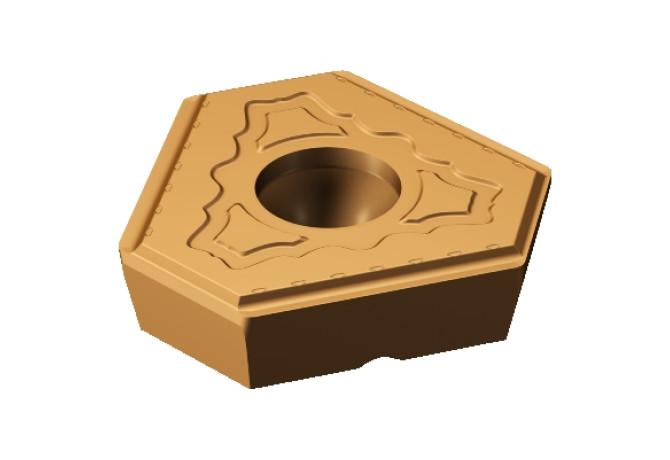

Главная Инструменты 201-01 - Triangle insert TXN 400708-L 1125

TXN 400708-L 1125

Артикул: 6158692

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

AS (Clearance angle wiper edge)

0 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiAlN

D1 (Fixing hole diameter)

6.5 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-DP4007A0

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1125

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

23.505 mm

IFS (Insert mounting style code)

0 - Various

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DP4007$$8NBA$$$

LE (Cutting edge effective length)

19 mm

LOC-03 ISO

SV$$DP4007$$8NBA$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DP4007A0

NOI (Insert index count)

RE (Corner radius)

0.8 mm

S (Insert thickness)

7 mm

S1 (Insert thickness total)

7 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.047 kg
