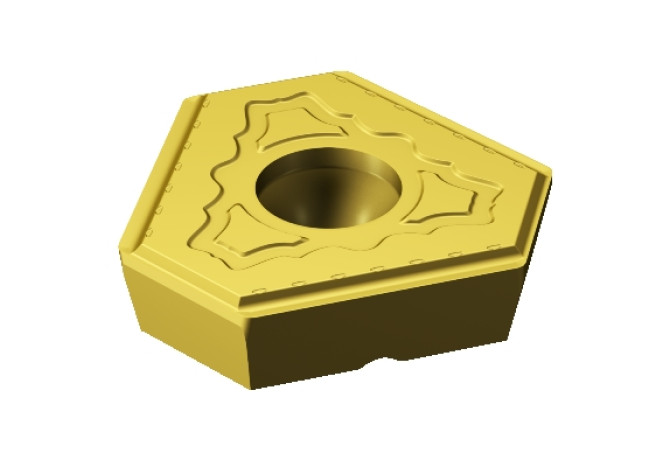

TXN 160408-A 1025
TXN 160408-A 1025
Артикул:
6332114
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
11 Degree
AS (Clearance angle wiper edge)
0 Degree
CBMD (Chip breaker manufacturers designation)
A
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
PVD TIALN+TIN

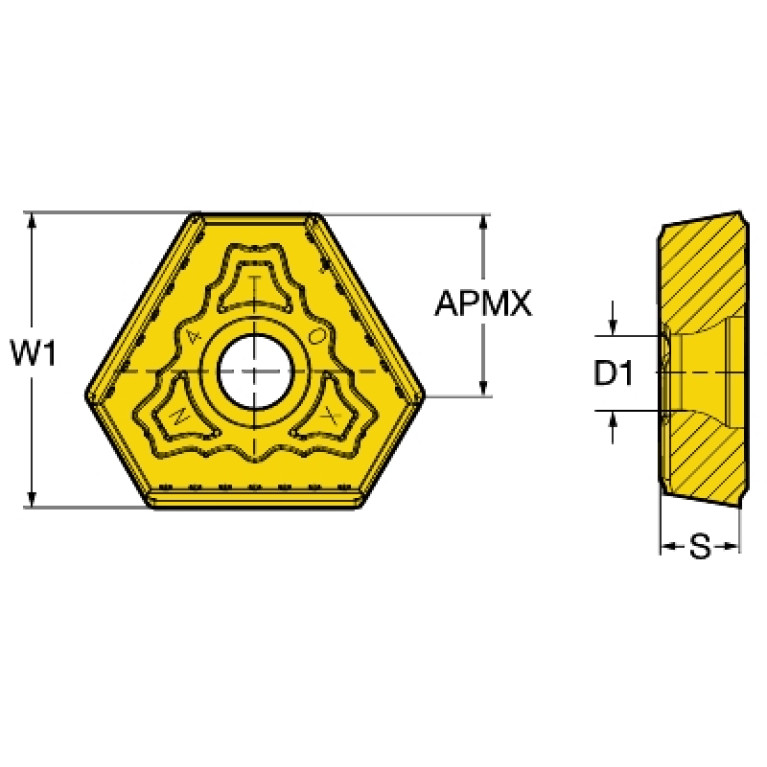

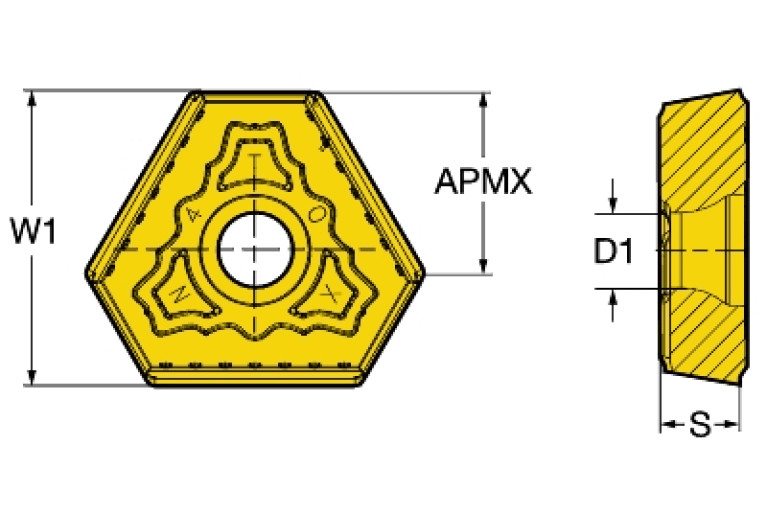

D1 (Fixing hole diameter)
4.6 mm
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
SV-DP1604A0
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
1025
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
10.917 mm
IFS (Insert mounting style code)
0 - Various
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$DP1604$$8NBA$$$
LE (Cutting edge effective length)
9 mm
LOC-03 ISO
SV$$DP1604$$8NBA$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-DP1604A0
NOI (Insert index count)
3
RE (Corner radius)
0.8 mm
S (Insert thickness)
4.16 mm
S1 (Insert thickness total)
4.16 mm
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
E
Working process
No working processes available
WT (Weight of item)
0.005 kg
