Главная Инструменты 201-01 - Triangle insert TPUN160304FLP CD10

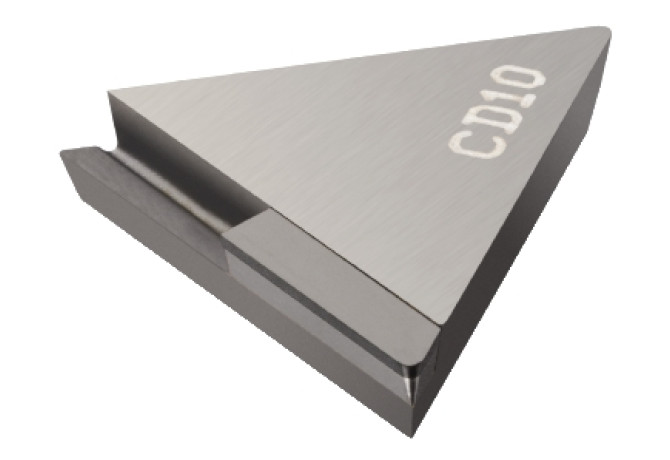

TPUN160304FLP CD10

Артикул: 5755309

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TP1603041L

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

CD10

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

L - Left

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP1603041LA$$04

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

7.4 mm

LOC-03 ISO

ISO$TP1603041LA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603041L

Materials

MIID (Master insert identification)

TPUN160304 CD10

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TPUN160304

STDDESAnsi (Standard designation ANSI)

TPUN321

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

U - Not treated

Working process

No working processes available

WT (Weight of item)

0.005 kg
