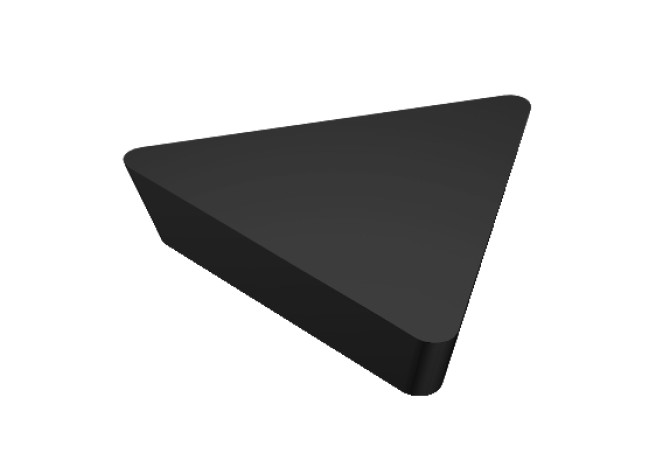

Главная Инструменты 201-01 - Triangle insert TPUN 22 04 12 3215

TPUN 22 04 12 3215

Артикул: 5755411

В наличии

0 ₽

В корзину

Описание

Характеристики

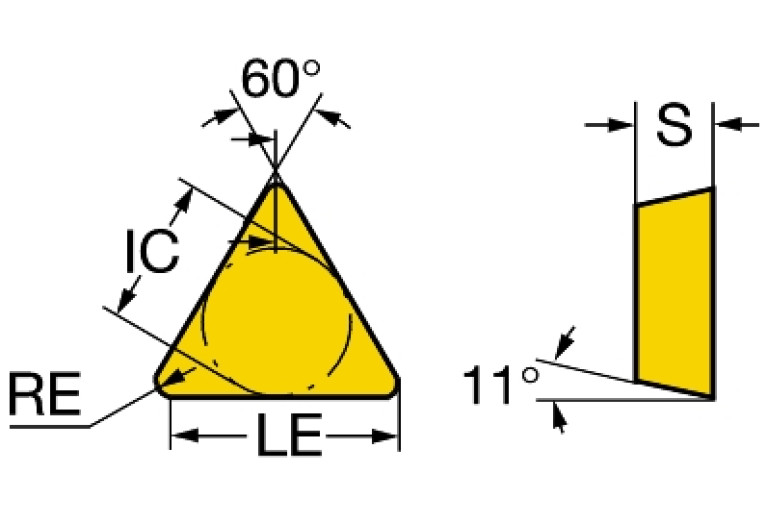

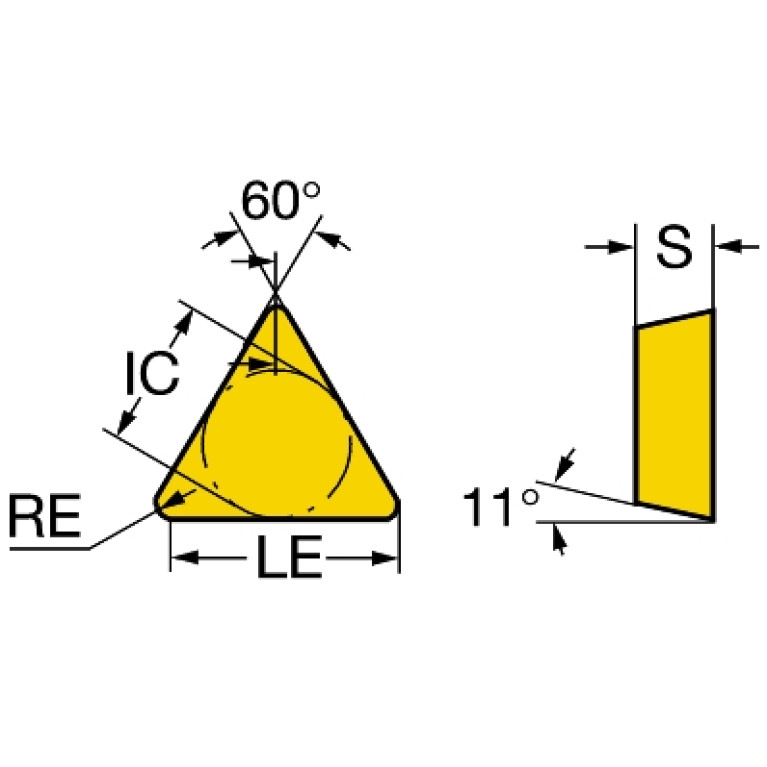

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

PUN

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TICN+AL2O3

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

TP2204121N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

3215

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP2204121NA$$12

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

20.797 mm

LOC-03 ISO

ISO$TP2204121NA$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP2204121N

Materials

MIID (Master insert identification)

TPUN220412 3215

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

TPUN220412

STDDESAnsi (Standard designation ANSI)

TPUN433

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

U - Not treated

Working process

No working processes available

WT (Weight of item)

0.014 kg
