Главная Инструменты 201-01 - Triangle insert TPUN 16 03 08 3210

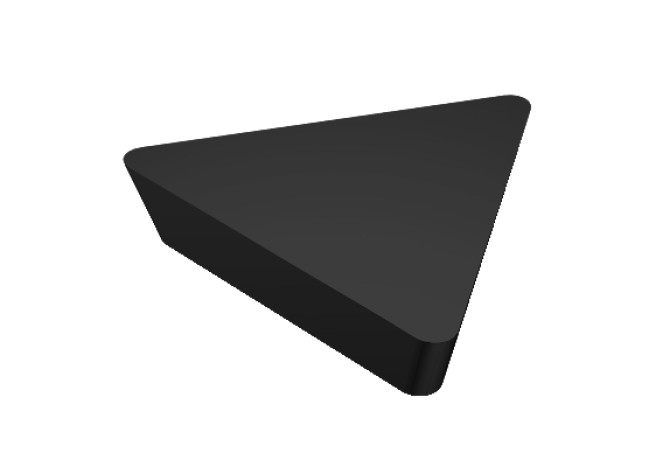

TPUN 16 03 08 3210

TPUN 16 03 08 3210 TPUN 16 03 08 3210 TPUN 16 03 08 3210

TPUN 16 03 08 3210

SV - Sandvik-Coromant
Артикул: 6868417
В наличии
0 ₽
В корзину
Описание
Характеристики

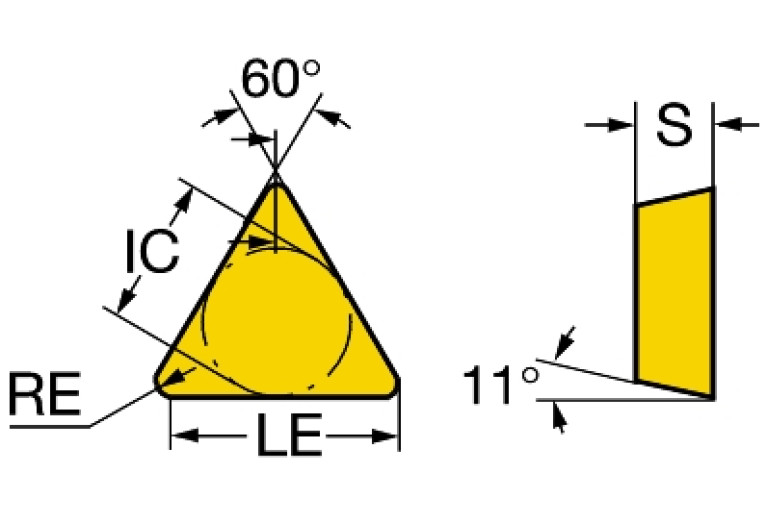

AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
PUN
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
TP1603081N
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
3210
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
9.525 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TP1603081NA$$08
L (Cutting edge length)
16.498 mm
LE (Cutting edge effective length)
15.698 mm
LOC-03 ISO
ISO$TP1603081NA$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TP1603081N
Materials
K
MIID (Master insert identification)
TPUN160308 3210
NOI (Insert index count)
3
RE (Corner radius)
0.794 mm
S (Insert thickness)
3.175 mm
S1 (Insert thickness total)
3.175 mm
STDDES (Standard designation)
TPUN160308
STDDESAnsi (Standard designation ANSI)
TPUN322
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
U - Not treated
Working process
No working processes available
WT (Weight of item)
0.005 kg
