Главная Инструменты 201-01 - Triangle insert TPUN 11 03 04 H13A

TPUN 11 03 04 H13A

Артикул: 5755331

В наличии

0 ₽

В корзину

Описание

Характеристики

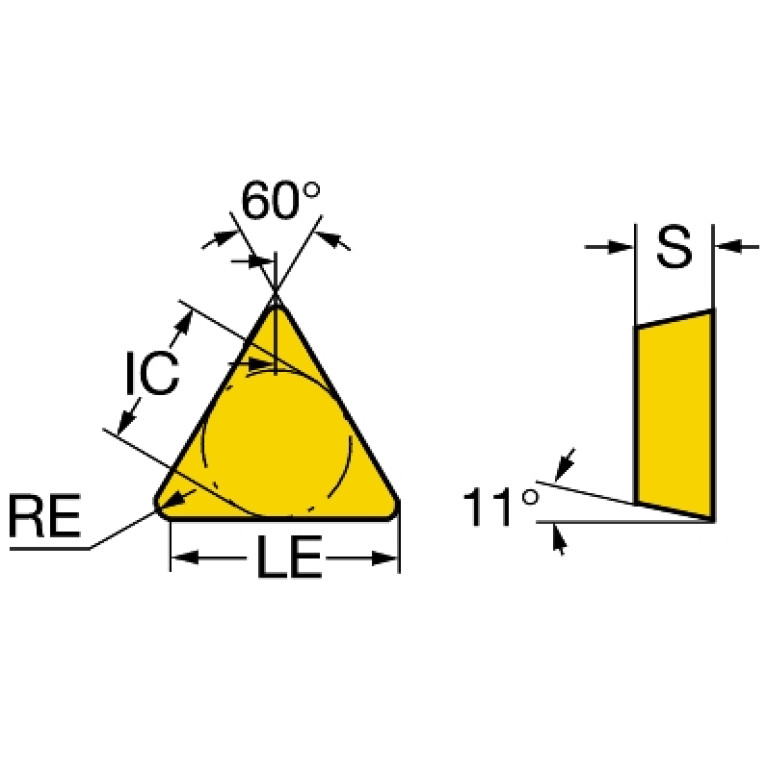

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

PUN

CECC (Cutting edge condition code)

E - Rounded

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TP1103041N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP1103041NA$$04

L (Cutting edge length)

10.999 mm

LE (Cutting edge effective length)

10.599 mm

LOC-03 ISO

ISO$TP1103041NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103041N

Materials

P,M,K,N,S

MIID (Master insert identification)

TPUN110304 H13A

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TPUN110304

STDDESAnsi (Standard designation ANSI)

TPUN221

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

U - Not treated

Working process

No working processes available

WT (Weight of item)

0.002 kg
