Главная Инструменты 201-01 - Triangle insert TPMX 16 03 12 R22 235

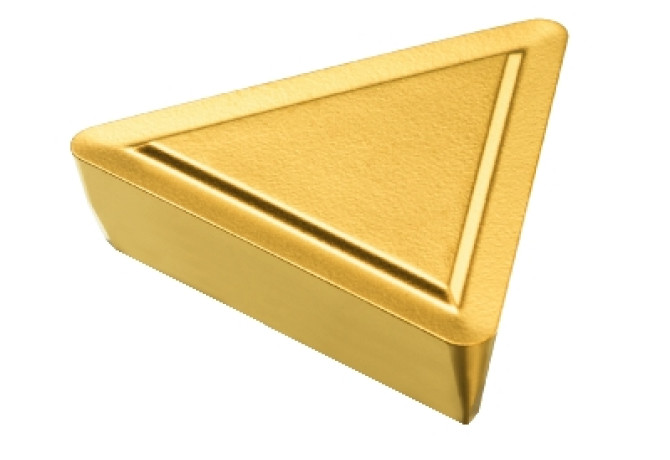

TPMX 16 03 12 R22 235

Артикул: 5755325

В наличии

0 ₽

В корзину

Описание

Характеристики

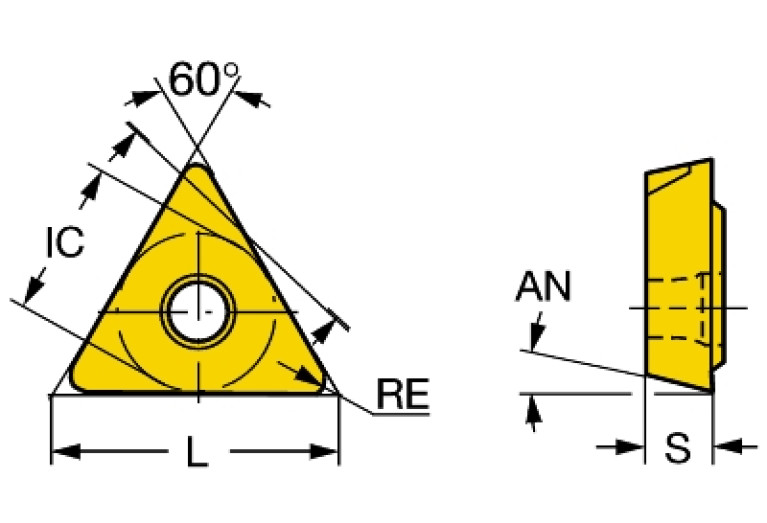

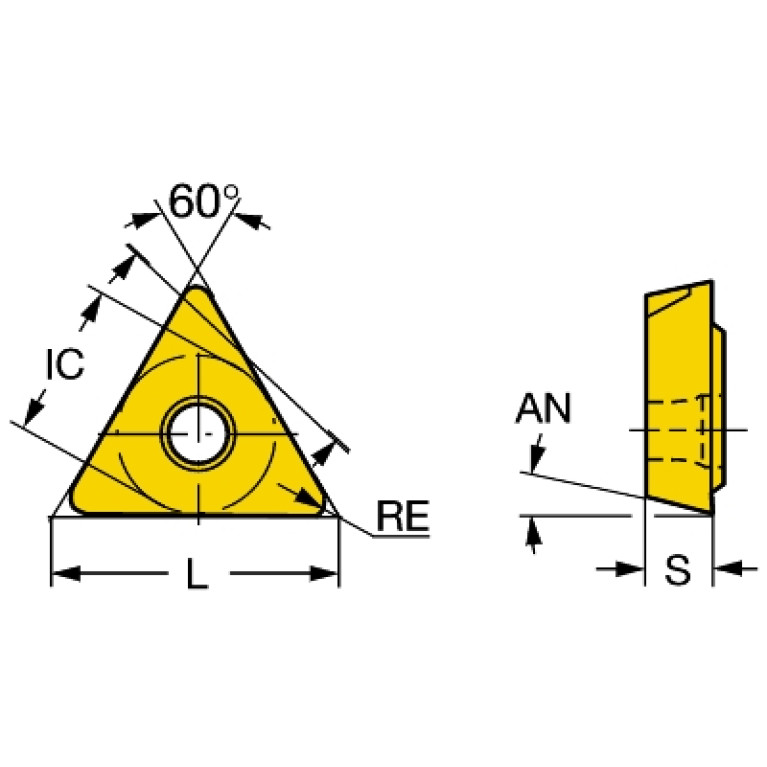

AN (Clearance angle major)

11 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+TiN

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-DC160300

EPSR (Insert included angle)

60 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DC1603$$3RB$$$$

L (Cutting edge length)

16.498 mm

LOC-03 ISO

SV$$DC1603$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DC160300

MIID (Master insert identification)

TPMX160312 235

NOI (Insert index count)

RE (Corner radius)

1.2 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TPMX160312

STDDESAnsi (Standard designation ANSI)

TPMX323

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.005 kg
