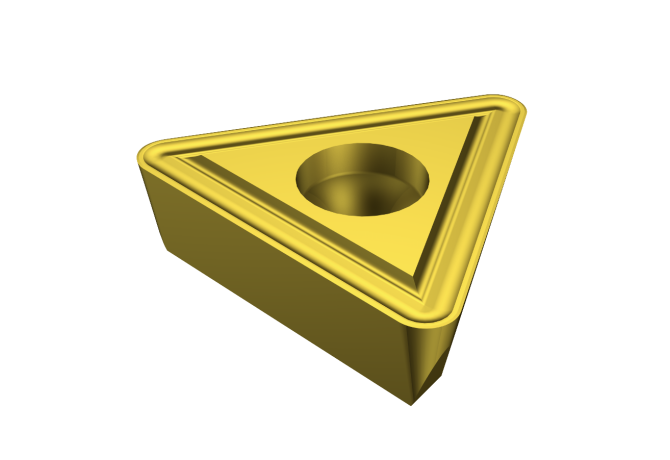

Главная Инструменты 201-01 - Triangle insert TPMT 22 06 12TR-23 235

TPMT 22 06 12TR-23 235

Артикул: 5755323

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+TiN

D1 (Fixing hole diameter)

4.4 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-DC220600

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DC2206$$3RB$$$$

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

20.797 mm

LOC-03 ISO

SV$$DC2206$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DC220600

MIID (Master insert identification)

TPMT220612 235

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

TPMT220612

STDDESAnsi (Standard designation ANSI)

TPMT443

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.014 kg
