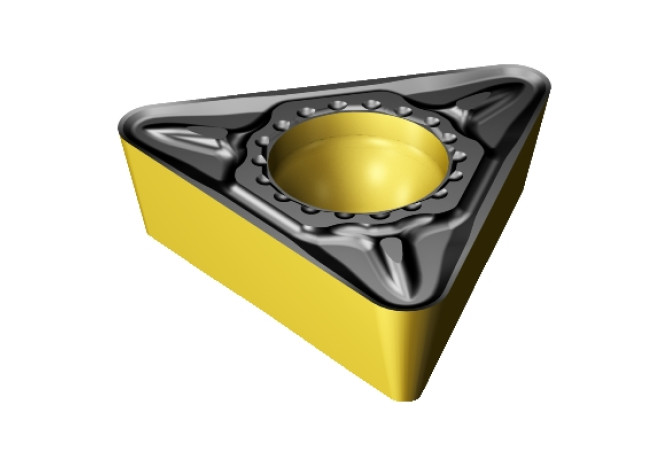

TPMT 16 T3 04-PM 4225

Артикул: 5755074

В наличии

0 ₽

В корзину

Описание

Характеристики

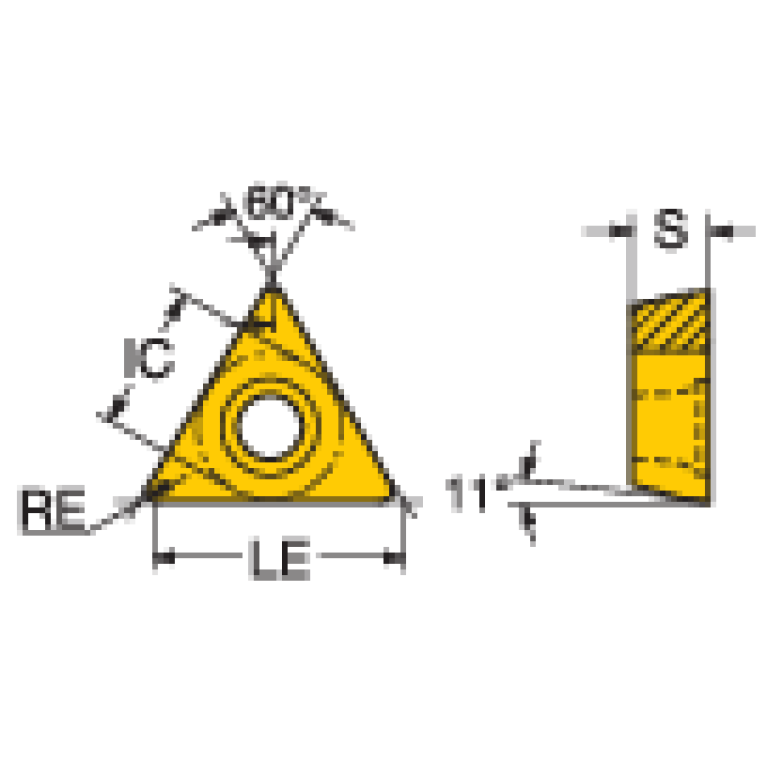

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

4.4 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

TP16T3043N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

4225

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP16T3043NB$$04

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

16.098 mm

LOC-03 ISO

ISO$TP16T3043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP16T3043N

Materials

P,K

MIID (Master insert identification)

TPMT16T304 4225

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.969 mm

S1 (Insert thickness total)

3.969 mm

STDDES (Standard designation)

TPMT16T304

STDDESAnsi (Standard designation ANSI)

TPMT32.51

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.005 kg
