Главная Инструменты 201-01 - Triangle insert TPMR 11 03 08-53 2025

TPMR 11 03 08-53 2025

Артикул: 5754978

В наличии

0 ₽

В корзину

Описание

Характеристики

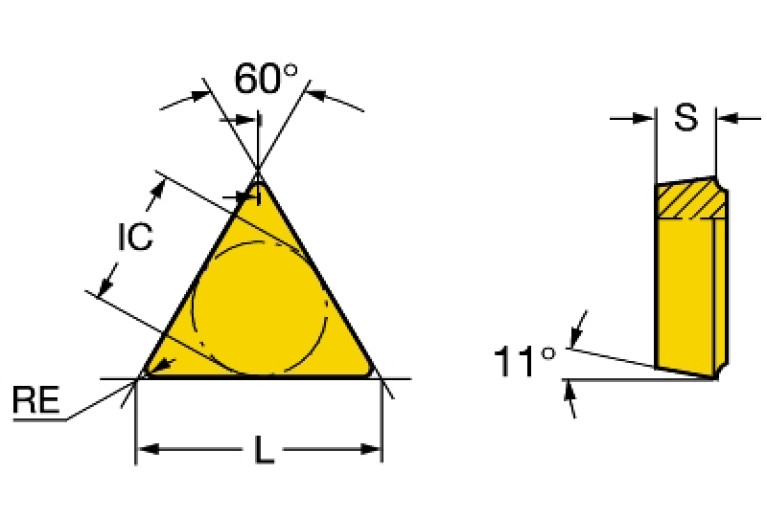

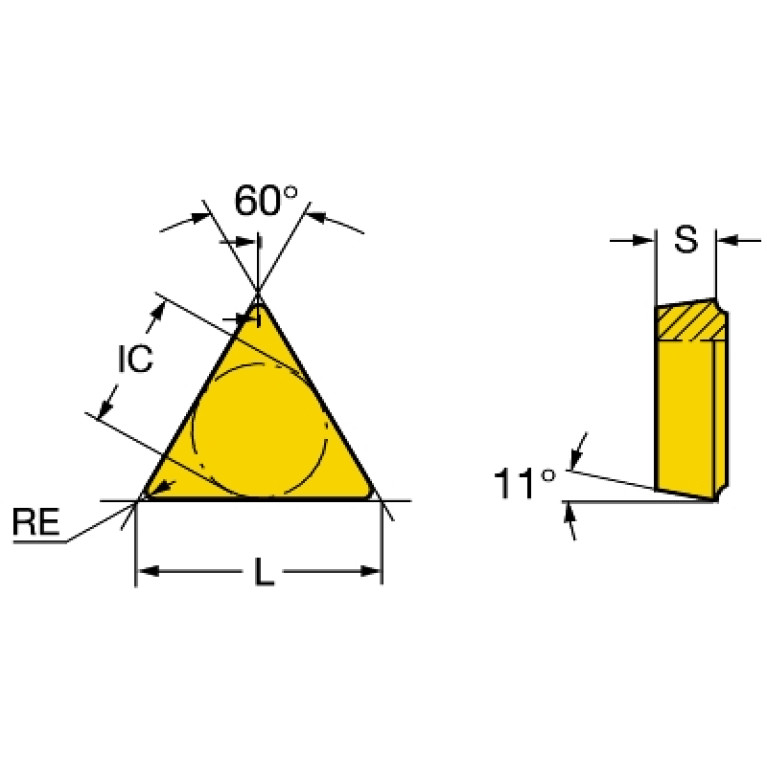

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TP1103081N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

2025

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP1103081NA$$08

L (Cutting edge length)

10.999 mm

LE (Cutting edge effective length)

10.199 mm

LOC-03 ISO

ISO$TP1103081NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103081N

Materials

MIID (Master insert identification)

TPMR110308 2025

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TPMR110308

STDDESAnsi (Standard designation ANSI)

TPMR222

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
