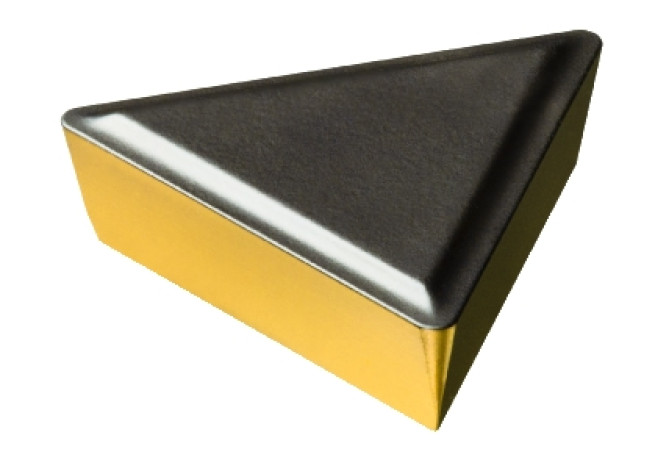

TPMR 09 02 08 4425
TPMR 09 02 08 4425
Артикул:
8019555
В наличии
0 ₽
Характеристики

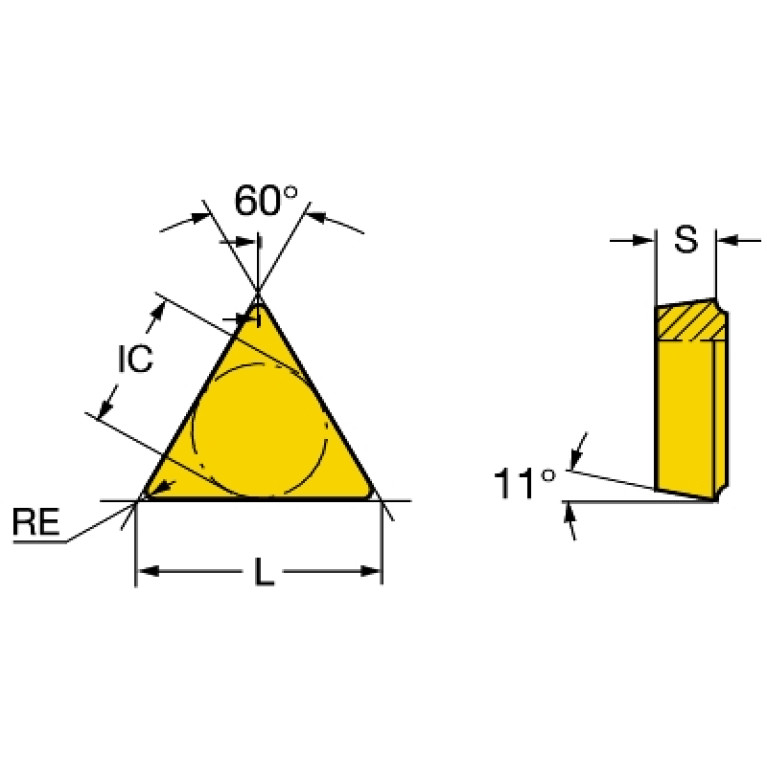

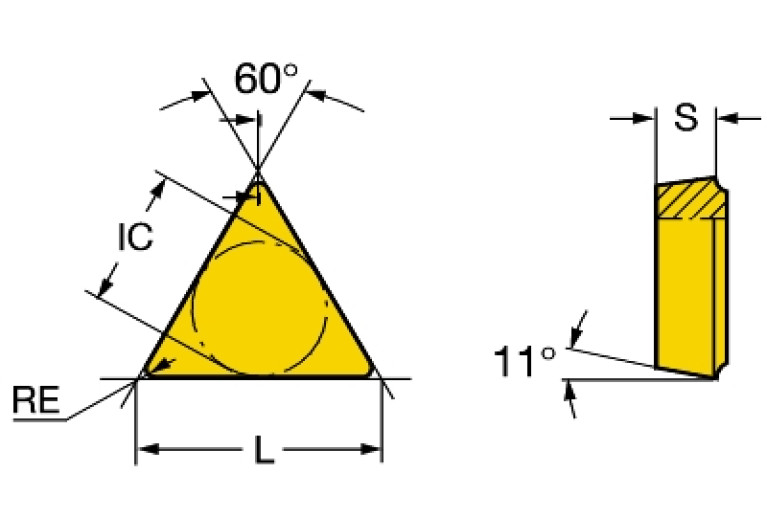

AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
53
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
TP0902081N
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
4425
GRDPRIO (Standard designation of the grade main application)
HC
IC (Inscribed circle diameter)
5.556 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TP0902081NA$$08
L (Cutting edge length)
9.624 mm
LE (Cutting edge effective length)
9.099 mm
LOC-03 ISO
ISO$TP0902081NA$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TP0902081N
Materials
P,K
MIID (Master insert identification)
TPMR090208 4425
NOI (Insert index count)
3
RE (Corner radius)
0.794 mm
S (Insert thickness)
2.381 mm
S1 (Insert thickness total)
2.381 mm
STDDES (Standard designation)
TPMR090208
STDDESAnsi (Standard designation ANSI)
TPMR1.81.52
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.001 kg
