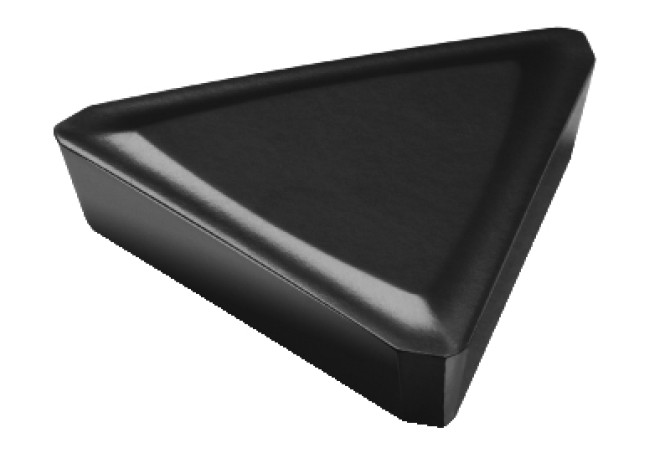

Главная Инструменты 201-01 - Triangle insert TPKR 16 03 PP R-WH 3040

TPKR 16 03 PP R-WH 3040

Артикул: 5755071

В наличии

0 ₽

В корзину

Описание

Характеристики

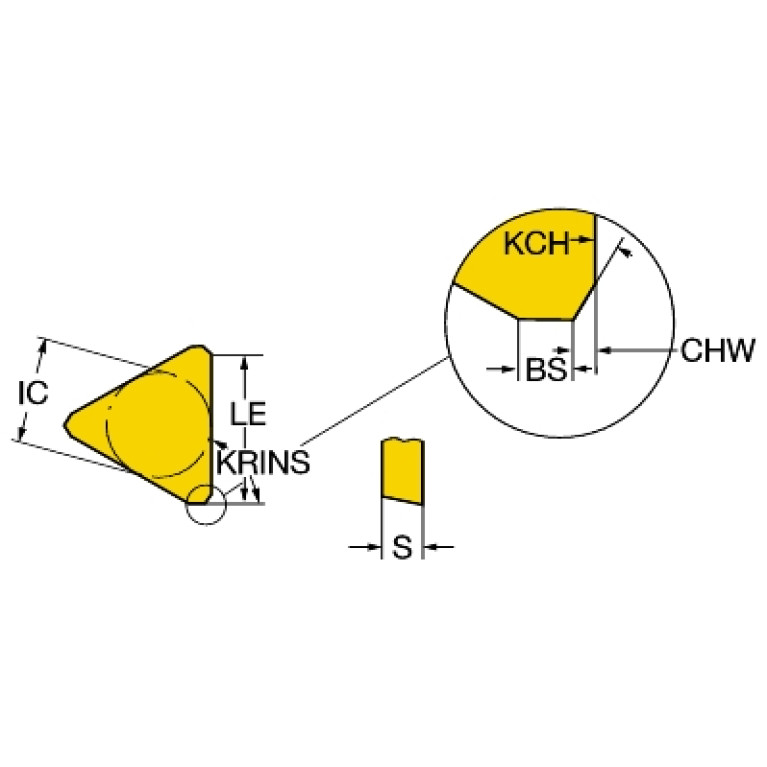

AN (Clearance angle major)

11 Degree

AS (Clearance angle wiper edge)

11 Degree

BS (Wiper edge length)

1.2 mm

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

TP1603PP1R

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

3040

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP1603$$1RAPP$$

KCH (Corner chamfer angle)

44 Degree

KRINS (Cutting edge angle major)

90 Degree

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

13 mm

LOC-03 ISO

ISO$TP1603$$1RAPP$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603PP1R

Materials

P,K,H

NOI (Insert index count)

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.005 kg
