Главная Инструменты 201-01 - Triangle insert TPKN 22 04 PD L 4230

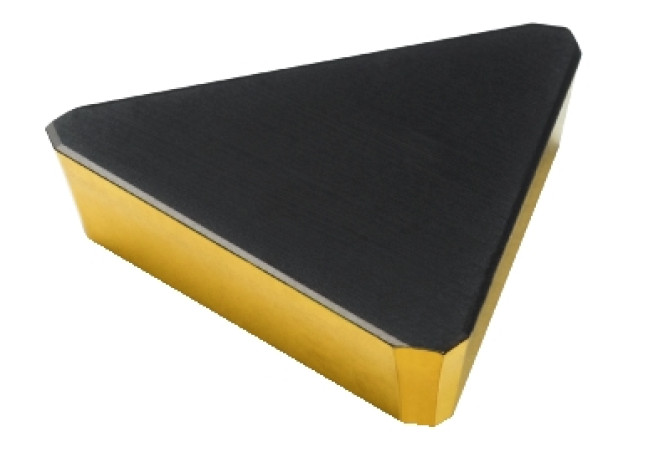

TPKN 22 04 PD L 4230

Артикул: 6571381

В наличии

0 ₽

В корзину

Описание

Характеристики

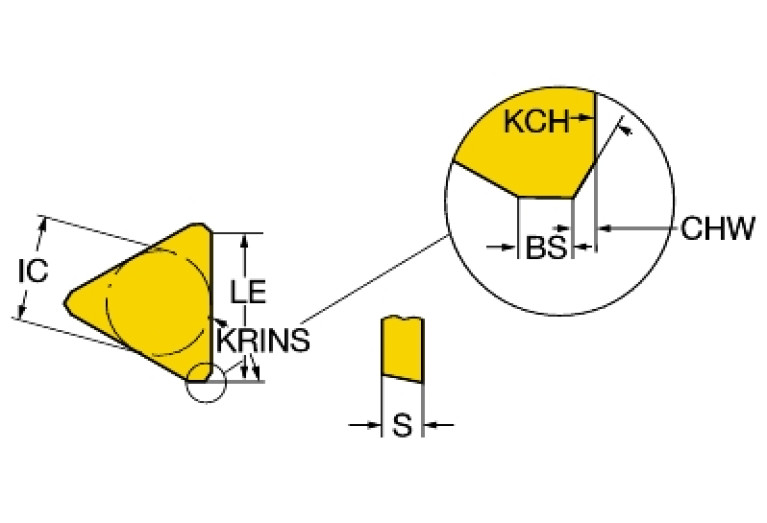

AN (Clearance angle major)

11 Degree

AS (Clearance angle wiper edge)

15 Degree

BS (Wiper edge length)

1.4 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

E - Rounded

CHW (Corner chamfer width)

0.4 mm

COATN (Coating)

CVD TiCN+Al2O3+TiN

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TP2204PD1R

EPSR (Insert included angle)

60 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

4230

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP2204$$1RAPD$$

KCH (Corner chamfer angle)

45 Degree

KRINS (Cutting edge angle major)

90 Degree

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

18 mm

LOC-03 ISO

ISO$TP2204$$1RAPD$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP2204PD1R

Materials

P,K

NOI (Insert index count)

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

K - Cold formed

Working process

No working processes available

WT (Weight of item)

0.013 kg
