Главная Инструменты 201-01 - Triangle insert TPGX 24 05 12R-L 1115

TPGX 24 05 12R-L 1115

Артикул: 6332208

В наличии

0 ₽

В корзину

Описание

Характеристики

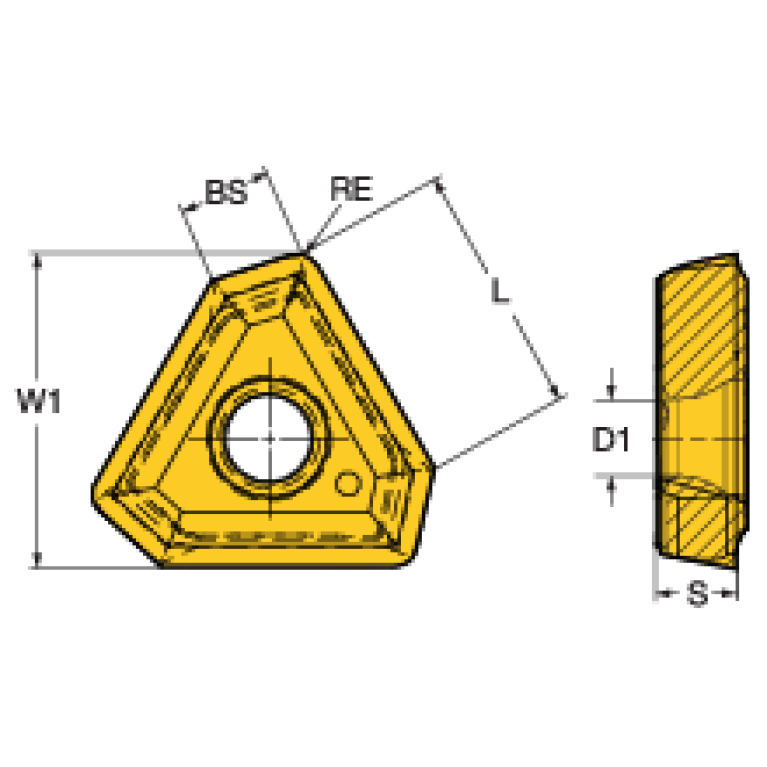

AN (Clearance angle major)

11 Degree

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

PVD TiAlN+TiN

D1 (Fixing hole diameter)

4.4 mm

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

SV-DM240500

EPSR (Insert included angle)

60 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

1115

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

14.2 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$DM2405$$3RB$$$$

L (Cutting edge length)

13.3 mm

LOC-03 ISO

SV$$DM2405$$3RB$$$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-DM240500

MIID (Master insert identification)

TPGX240512 1115

NOI (Insert index count)

RE (Corner radius)

1.2 mm

S (Insert thickness)

5.5 mm

S1 (Insert thickness total)

5.5 mm

STDDES (Standard designation)

TPGX240512

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.015 kg
