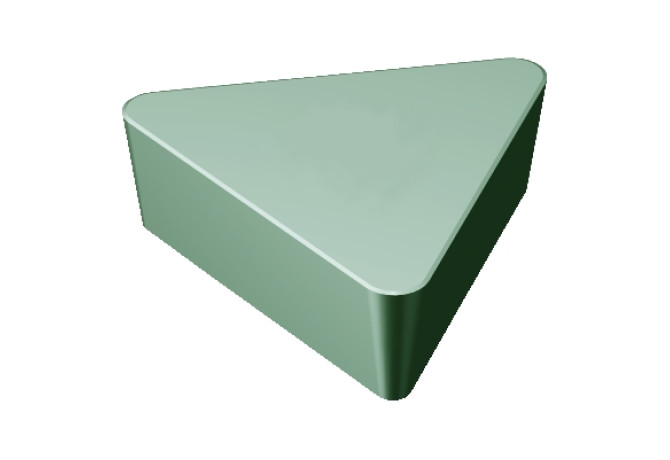

Главная Инструменты 201-01 - Triangle insert TPGN160308T01020 675

TPGN160308T01020 675

Артикул: 8672155

В наличии

0 ₽

В корзину

Описание

Характеристики

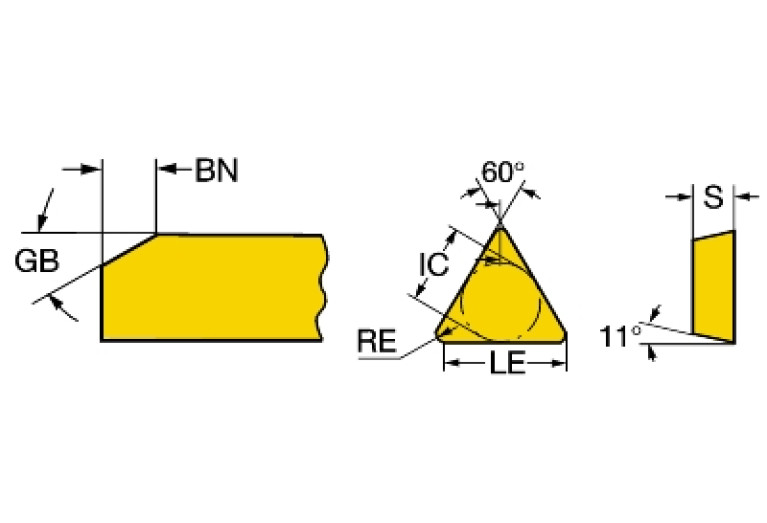

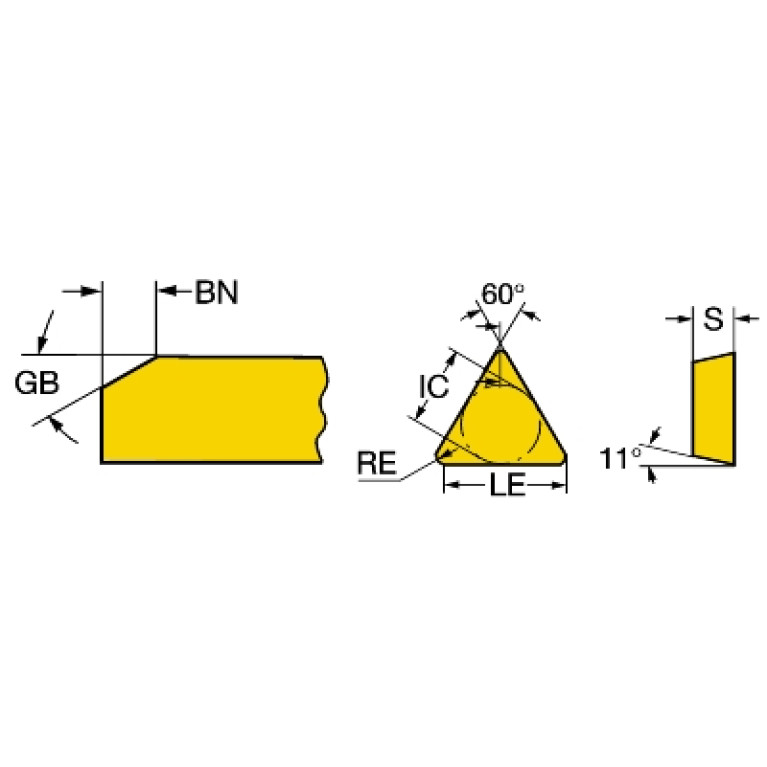

AN (Clearance angle major)

11 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

TP1603081N

EPSR (Insert included angle)

60 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

675

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP1603081NA$$08

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

15.698 mm

LOC-03 ISO

ISO$TP1603081NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603081N

Materials

S,H

MIID (Master insert identification)

TPGN160308 675

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TPGN160308

STDDESAnsi (Standard designation ANSI)

TPGN322

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
