TPGN 22 04 04 H13A

TPGN 22 04 04 H13A TPGN 22 04 04 H13A TPGN 22 04 04 H13A

TPGN 22 04 04 H13A

SV - Sandvik-Coromant
Артикул: 5754873
В наличии
0 ₽
В корзину
Описание
Характеристики

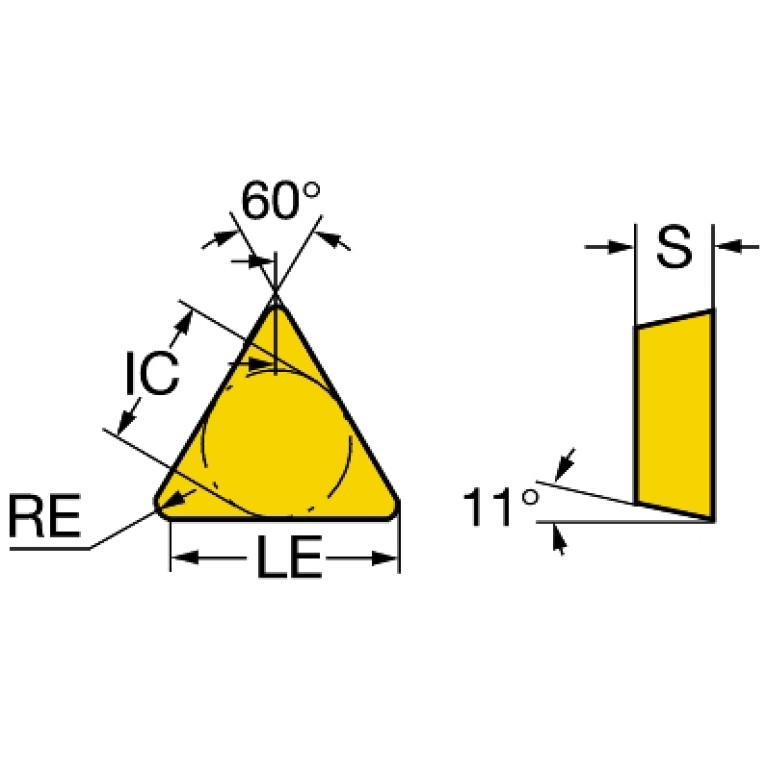

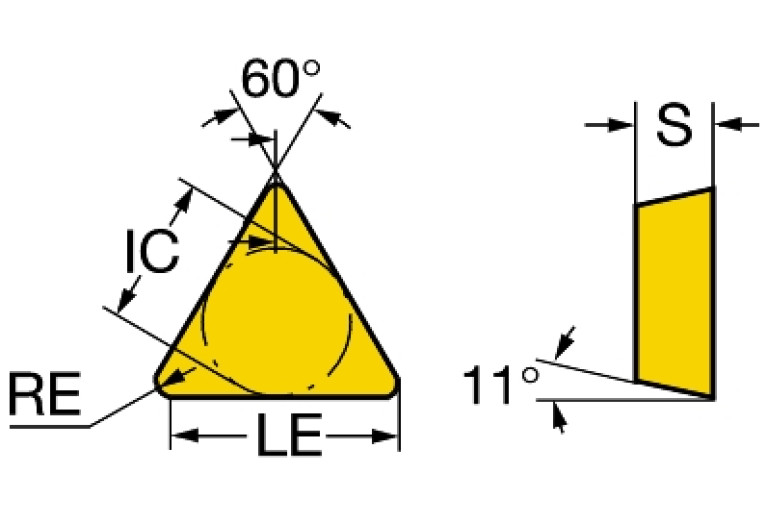

AN (Clearance angle major)
11 Degree
CB (Chip breaker face count)
0 - Without chip breaker
CBMD (Chip breaker manufacturers designation)
PGN
CECC (Cutting edge condition code)
F - Sharpedged
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
TP2204041N
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
H13A
GRDPRIO (Standard designation of the grade main application)
HW
IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
1 - Without bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TP2204041NA$$04
L (Cutting edge length)
21.997 mm
LE (Cutting edge effective length)
21.597 mm
LOC-03 ISO
ISO$TP2204041NA$$04
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TP2204041N
Materials
P,M,K,N,S
MIID (Master insert identification)
TPGN220404 H13A
NOI (Insert index count)
3
RE (Corner radius)
0.397 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
TPGN220404
STDDESAnsi (Standard designation ANSI)
TPGN431
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
G
Working process
No working processes available
WT (Weight of item)
0.012 kg
