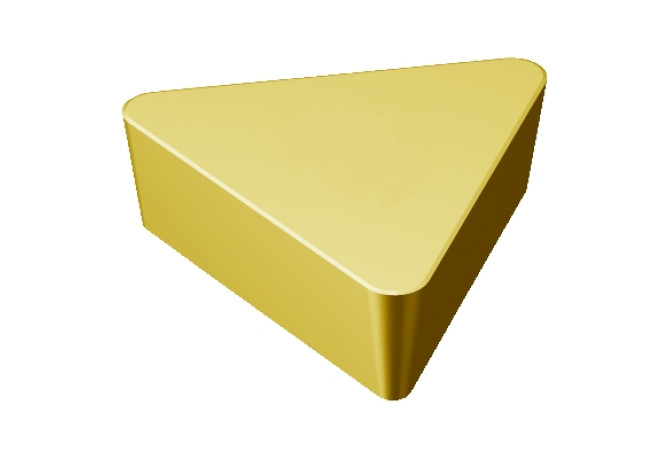

Главная Инструменты 201-01 - Triangle insert TPGN 16 03 04 1025

TPGN 16 03 04 1025

Артикул: 5754891

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

PGN

CECC (Cutting edge condition code)

F - Sharpedged

COATN (Coating)

PVD TiAlN+TiN

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

TP1603041N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP1603041NA$$04

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

16.098 mm

LOC-03 ISO

ISO$TP1603041NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603041N

Materials

P,M,N,S

MIID (Master insert identification)

TPGN160304 1025

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TPGN160304

STDDESAnsi (Standard designation ANSI)

TPGN321

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.005 kg
