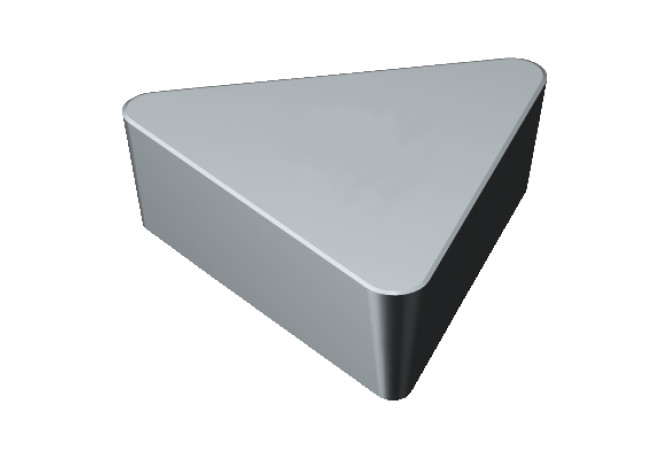

Главная Инструменты 201-01 - Triangle insert TPGN 11 03 00 H13A

TPGN 11 03 00 H13A

Артикул: 5754776

В наличии

0 ₽

В корзину

Описание

Характеристики

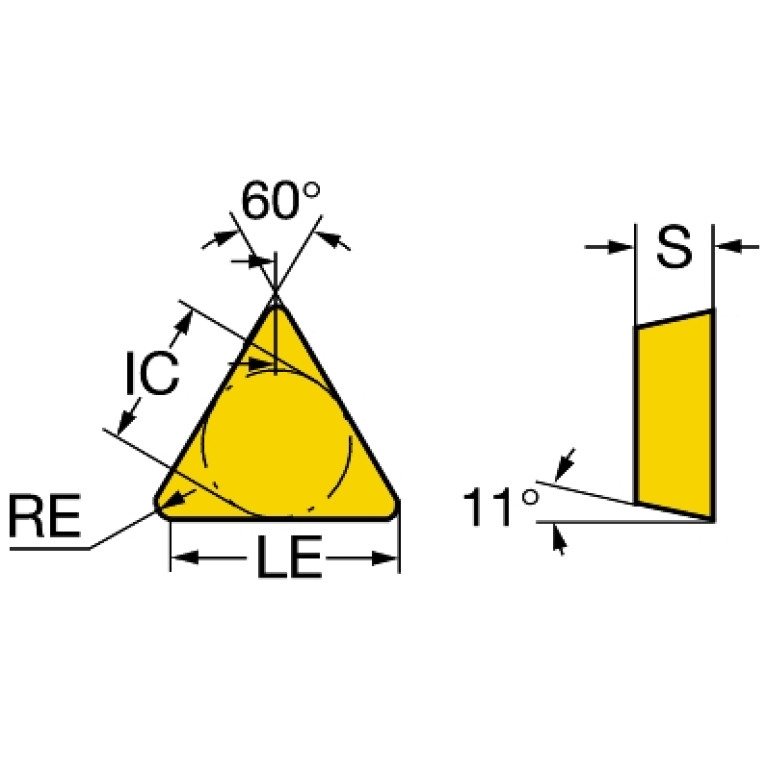

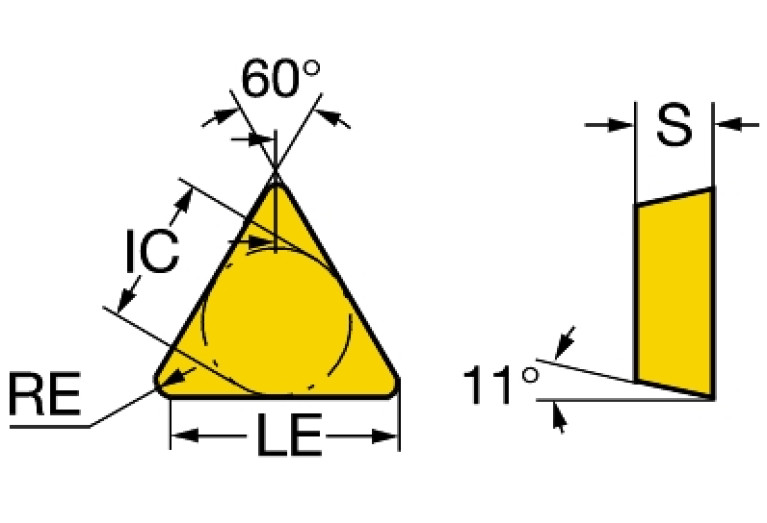

AN (Clearance angle major)

11 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

PGN

CECC (Cutting edge condition code)

F - Sharpedged

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

TP1103011N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

H13A

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TP1103011NA$$01

L (Cutting edge length)

10.999 mm

LE (Cutting edge effective length)

10.899 mm

LOC-03 ISO

ISO$TP1103011NA$$01

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103011N

Materials

P,M,K,N,S

MIID (Master insert identification)

TPGN110300 H13A

NOI (Insert index count)

RE (Corner radius)

0.1 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TPGN110300

STDDESAnsi (Standard designation ANSI)

TPGN220

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
