Главная Инструменты 201-01 - Triangle insert TNMX 49 10 51-MF 4425

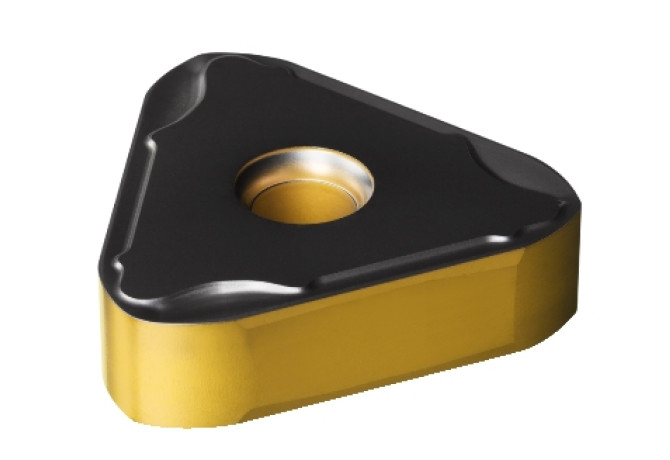

TNMX 49 10 51-MF 4425

Артикул: 8019696

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

21 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

7.93 mm

Delivery state valid from

12/1/2023

DIN

TN4910003L

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

4425

GRDPRIO (Standard designation of the grade main application)

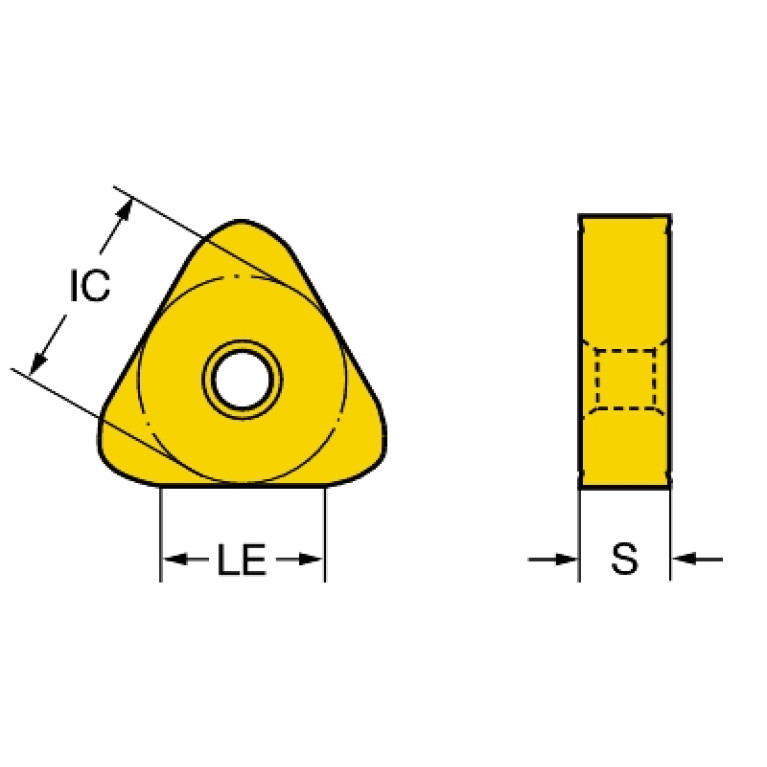

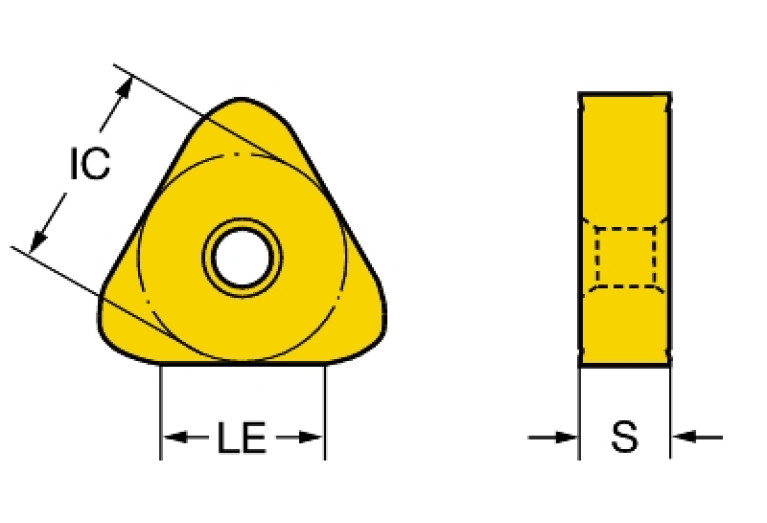

IC (Inscribed circle diameter)

28.575 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

L - Left

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN4910003LB$$00

KRINS (Cutting edge angle major)

120 Degree

L (Cutting edge length)

49.493 mm

LE (Cutting edge effective length)

21 mm

LOC-03 ISO

ISO$TN4910003LB$$00

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN4910003L

MIID (Master insert identification)

TNMX491051 4425

NOI (Insert index count)

RE (Corner radius)

12 mm

S (Insert thickness)

10 mm

S1 (Insert thickness total)

10 mm

STDDES (Standard designation)

TNMX491051

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.122 kg
