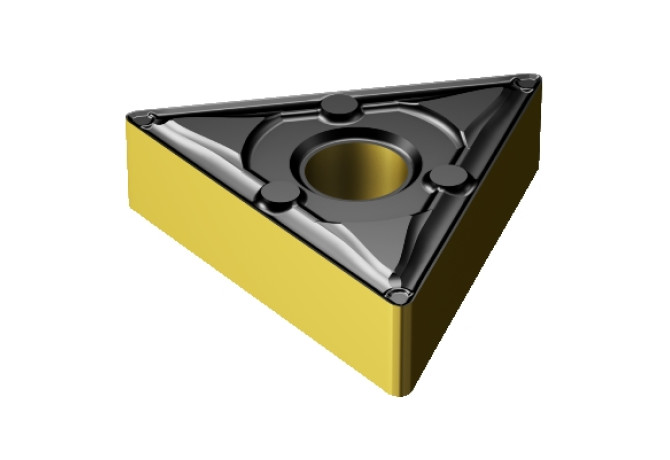

Главная Инструменты 201-01 - Triangle insert TNMX 16 04 04-WF 4315

TNMX 16 04 04-WF 4315

Артикул: 6612967

В наличии

0 ₽

В корзину

Описание

Характеристики

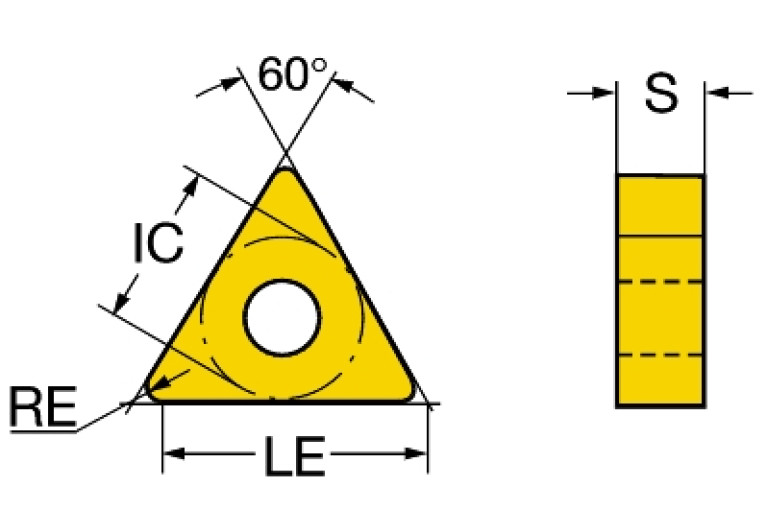

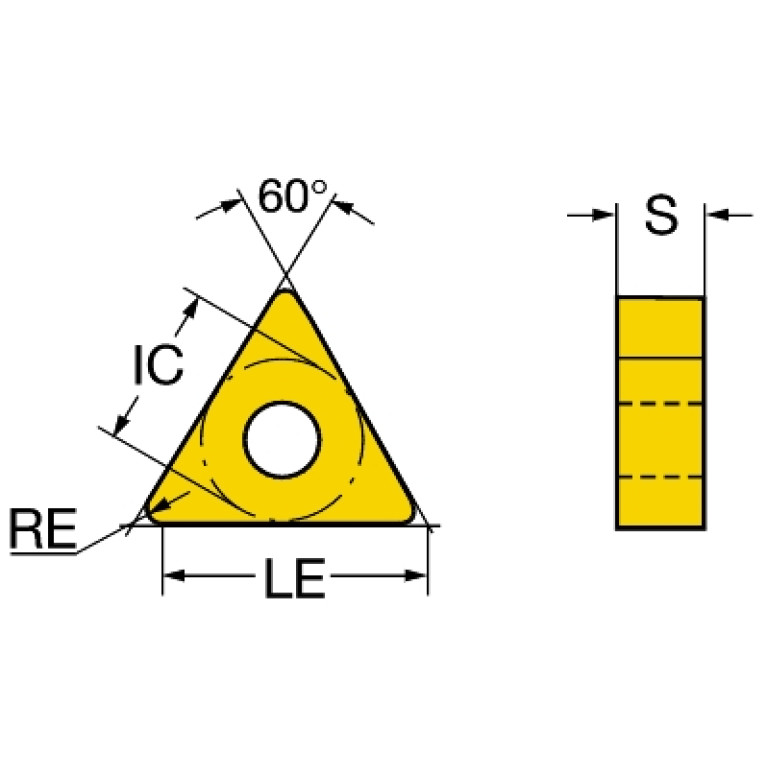

AN (Clearance angle major)

0 Degree

BS (Wiper edge length)

0.5 mm

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

3.81 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

TN1604042N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

4315

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN1604042NB$$04

KRINS (Cutting edge angle major)

91 Degree

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

16.098 mm

LOC-03 ISO

ISO$TN1604042NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604042N

Materials

P,K

MIID (Master insert identification)

TNMX160404 4315

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

TNMX160404

STDDESAnsi (Standard designation ANSI)

TNMX331

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.007 kg
