TNMT 33 09 31-PF 4225
TNMT 33 09 31-PF 4225
Артикул:
5754758
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
BS (Wiper edge length)
21 mm
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
PF
CECC (Cutting edge condition code)
E - Rounded
COATN (Coating)
CVD TiCN+Al2O3+TiN
D1 (Fixing hole diameter)
7.93 mm
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
TN3309163L
EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
4225
GRDPRIO (Standard designation of the grade main application)
HC

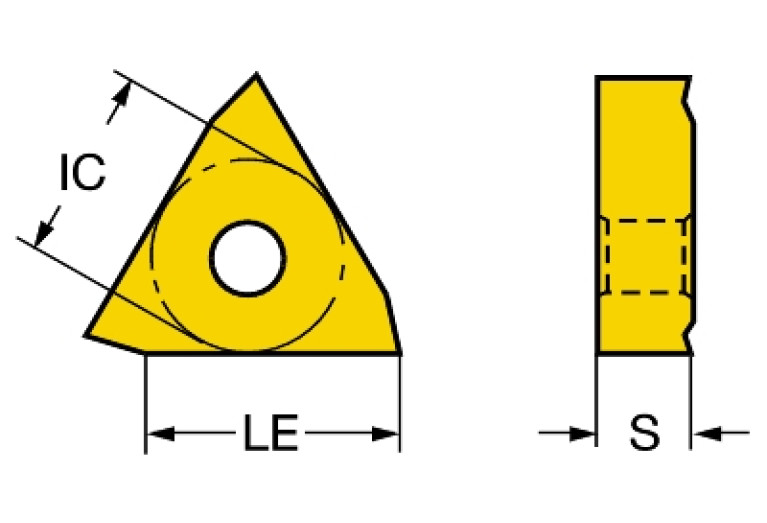

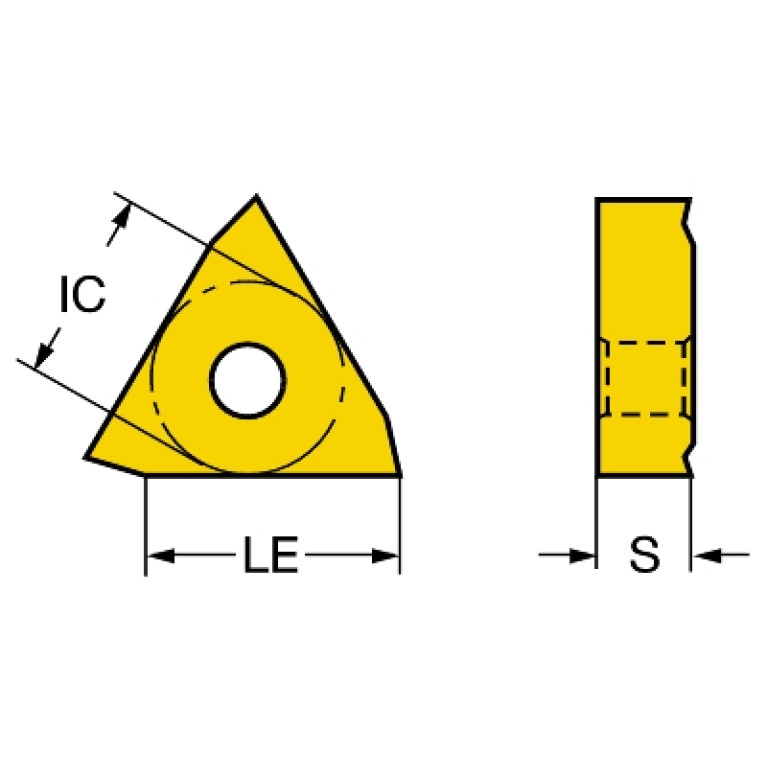

IC (Inscribed circle diameter)
19.05 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
L - Left
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TN3309163LB$$16
KCH (Corner chamfer angle)
105 Degree
KRINS (Cutting edge angle major)
120 Degree
L (Cutting edge length)
32.996 mm
LE (Cutting edge effective length)
5 mm
LOC-03 ISO
ISO$TN3309163LB$$16
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN3309163L
MIID (Master insert identification)
TNMT330931 4225
NOI (Insert index count)
3
RE (Corner radius)
1.588 mm
S (Insert thickness)
9.525 mm
S1 (Insert thickness total)
9.525 mm
STDDES (Standard designation)
TNMT330931
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.055 kg
