Главная Инструменты 201-01 - Triangle insert TNMG 33 07 16-PR 4425

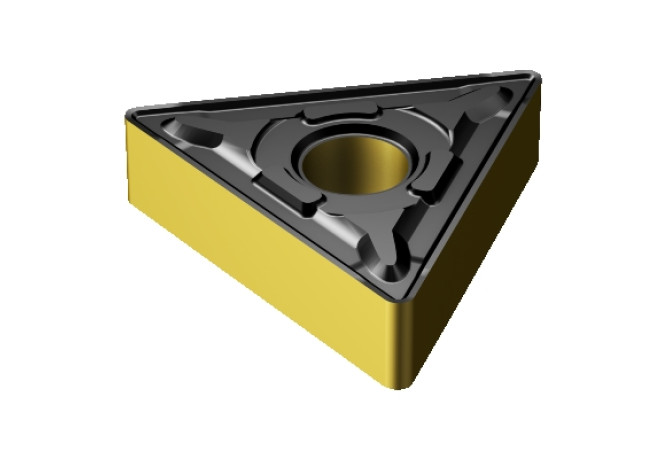

TNMG 33 07 16-PR 4425

Артикул: 8019688

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

7.925 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TN3307162N

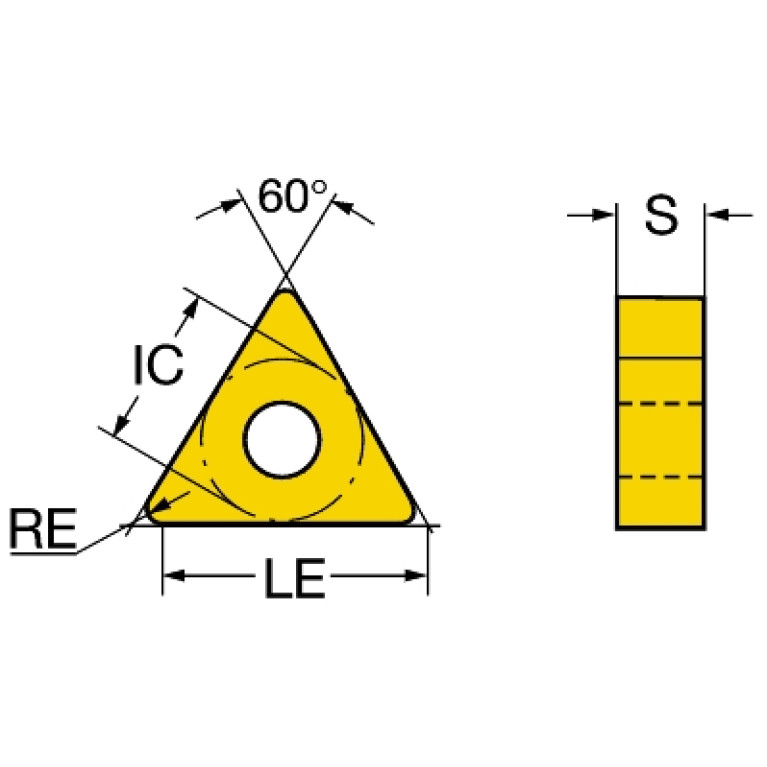

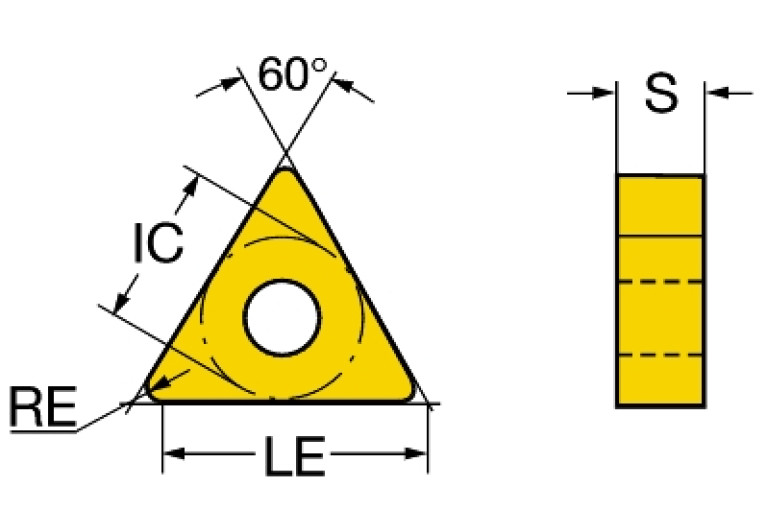

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

4425

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

19.05 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN3307162NB$$16

L (Cutting edge length)

32.996 mm

LE (Cutting edge effective length)

31.396 mm

LOC-03 ISO

ISO$TN3307162NB$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN3307162N

Materials

P,K

MIID (Master insert identification)

TNMG330716 4425

NOI (Insert index count)

RE (Corner radius)

1.588 mm

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

STDDES (Standard designation)

TNMG330716

STDDESAnsi (Standard designation ANSI)

TNMG654

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.045 kg
