Главная Инструменты 201-01 - Triangle insert TNMG 27 06 12-MR 235

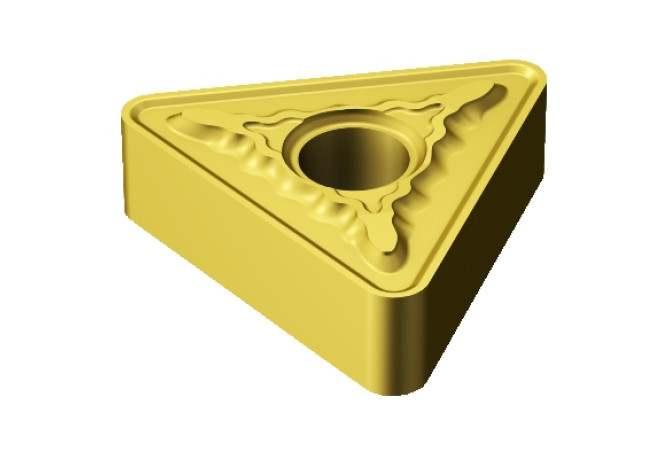

TNMG 27 06 12-MR 235

Артикул: 5754425

В наличии

0 ₽

В корзину

Описание

Характеристики

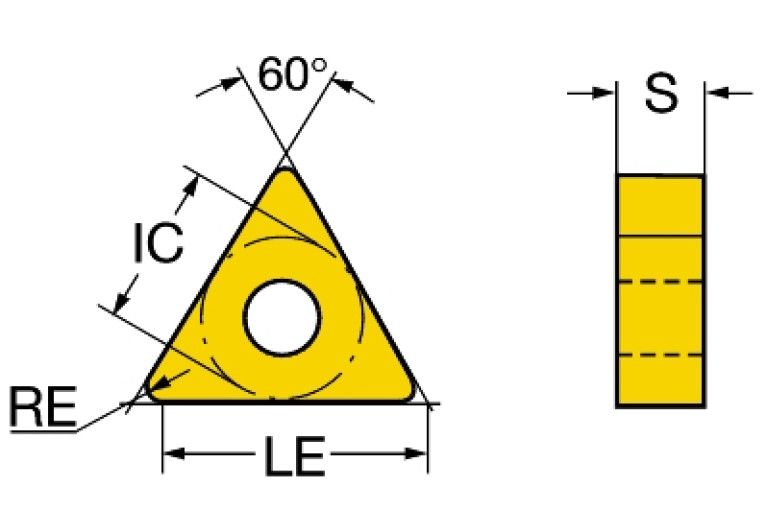

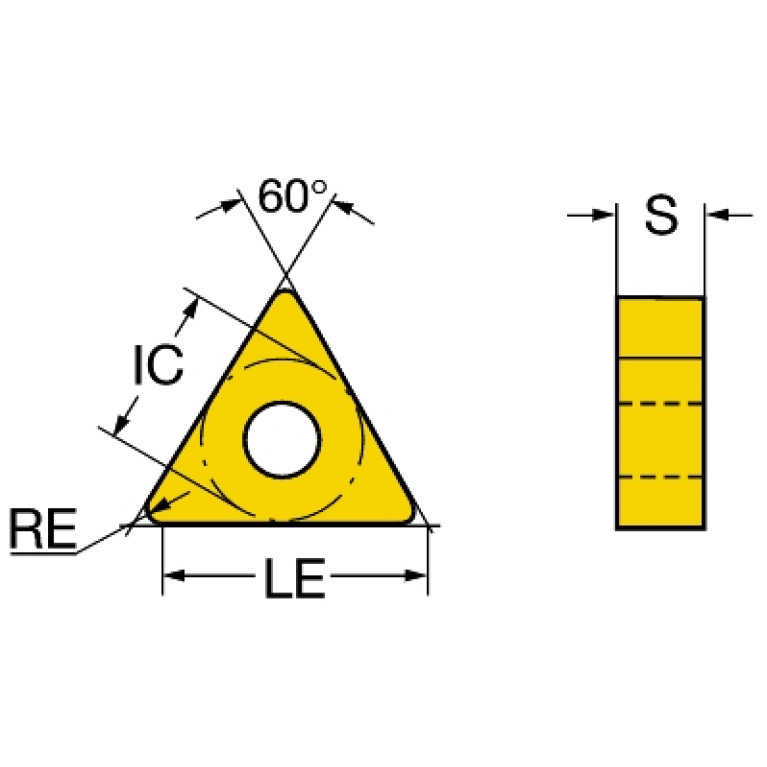

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+TiN

D1 (Fixing hole diameter)

6.35 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TN2706122N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

235

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

15.875 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN2706122NB$$12

L (Cutting edge length)

27.496 mm

LE (Cutting edge effective length)

26.296 mm

LOC-03 ISO

ISO$TN2706122NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2706122N

Materials

P,M

MIID (Master insert identification)

TNMG270612 235

NOI (Insert index count)

RE (Corner radius)

1.191 mm

S (Insert thickness)

6.35 mm

S1 (Insert thickness total)

6.35 mm

STDDES (Standard designation)

TNMG270612

STDDESAnsi (Standard designation ANSI)

TNMG543

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.027 kg
