Главная Инструменты 201-01 - Triangle insert TNMG 22 04 16-QM 1205

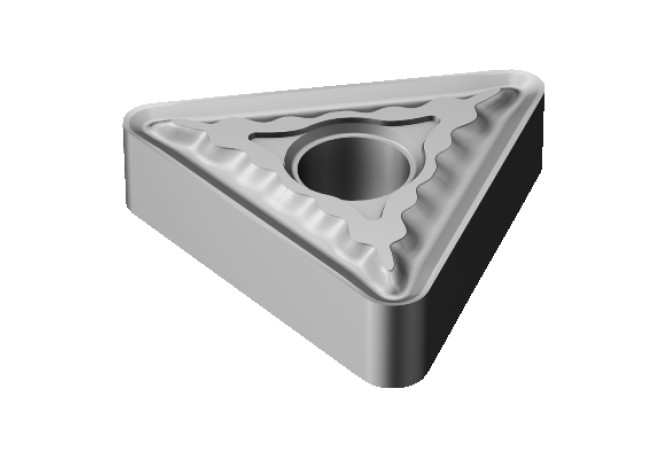

TNMG 22 04 16-QM 1205

Артикул: 8432343

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

0 Degree

CB (Chip breaker face count)

1 - With chip breaker one-side

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

AlTiN

D1 (Fixing hole diameter)

5.156 mm

Delivery state

LH - Stocked

Delivery state valid from

6/1/2024

DIN

TN2204162N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1205

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN2204162NB$$16

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

20.397 mm

LOC-03 ISO

ISO$TN2204162NB$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2204162N

Materials

P,M,S

MIID (Master insert identification)

TNMG220416 1205

NOI (Insert index count)

RE (Corner radius)

1.588 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

TNMG220416

STDDESAnsi (Standard designation ANSI)

TNMG434

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.013 kg
