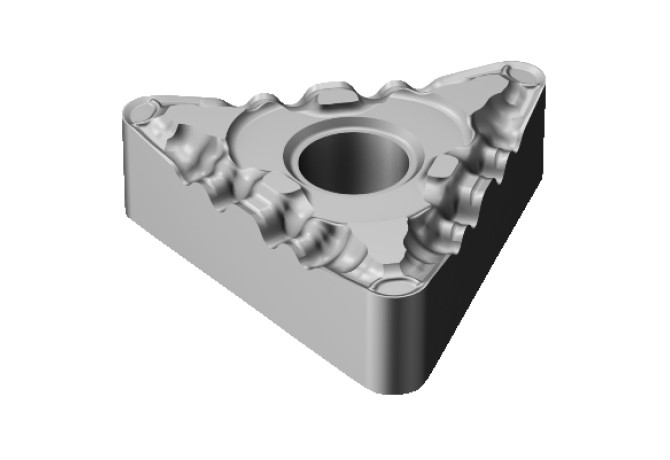

TNMG 22 04 08-PF 5015
TNMG 22 04 08-PF 5015
Артикул:
5754228
В наличии
0 ₽
Характеристики
AN (Clearance angle major)
0 Degree
CB (Chip breaker face count)
1 - With chip breaker one-side
CBMD (Chip breaker manufacturers designation)
PF
CECC (Cutting edge condition code)
E - Rounded
D1 (Fixing hole diameter)
5.156 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
TN2204082N

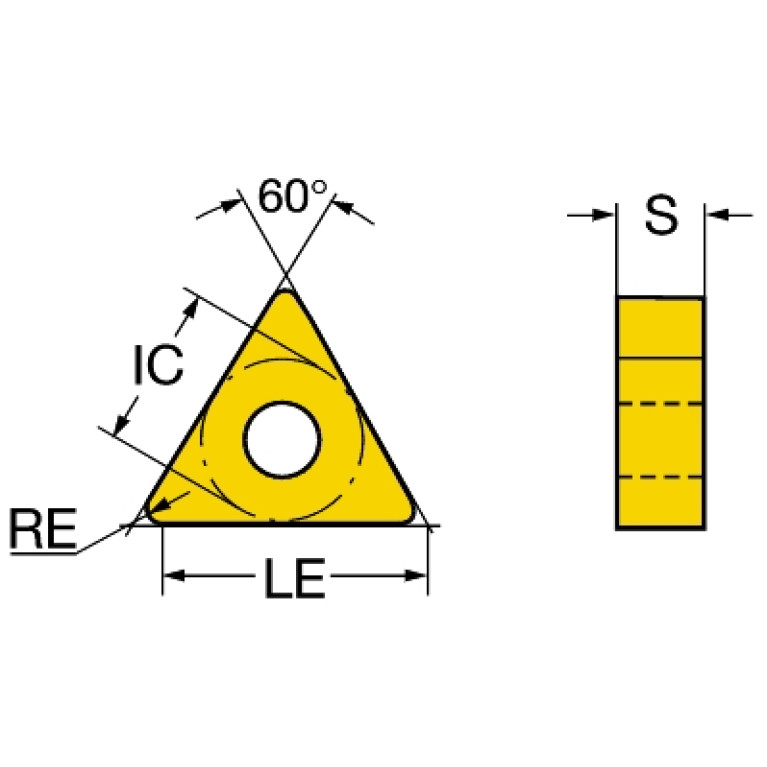

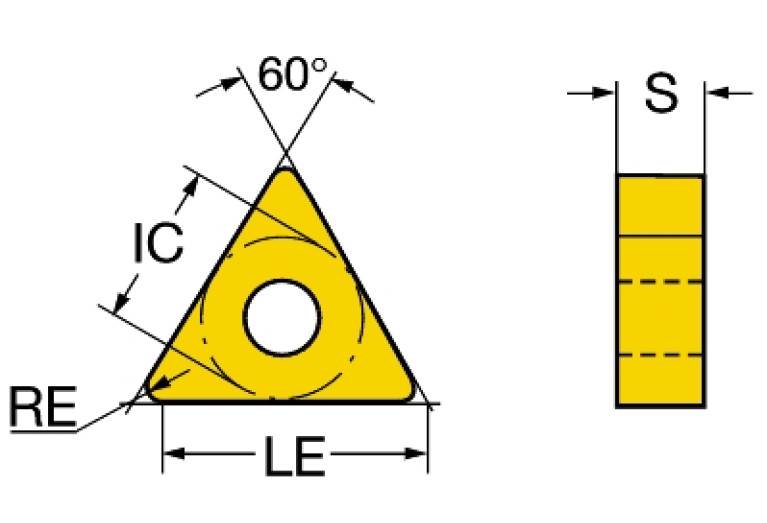

EPSR (Insert included angle)
60 Degree
GRDMFG (Grade manufacturers designation)
5015
GRDPRIO (Standard designation of the grade main application)
HT
IC (Inscribed circle diameter)
12.7 mm
IFS (Insert mounting style code)
2 - With cylindrical bore
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
1
ISO
ISO$TN2204082NB$$08
L (Cutting edge length)
21.997 mm
LE (Cutting edge effective length)
21.197 mm
LOC-03 ISO
ISO$TN2204082NB$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN2204082N
Materials
P,K
MIID (Master insert identification)
TNMG220408 5015
NOI (Insert index count)
6
RE (Corner radius)
0.794 mm
S (Insert thickness)
4.763 mm
S1 (Insert thickness total)
4.763 mm
STDDES (Standard designation)
TNMG220408
STDDESAnsi (Standard designation ANSI)
TNMG432
TCE (Tipped cutting edge code)
S
TCINS (Tolerance class insert)
M
Working process
No working processes available
WT (Weight of item)
0.006 kg
