Главная Инструменты 201-01 - Triangle insert TNHF 12 04 AN-CA 4240

TNHF 12 04 AN-CA 4240

Артикул: 5753665

В наличии

0 ₽

В корзину

Описание

Характеристики

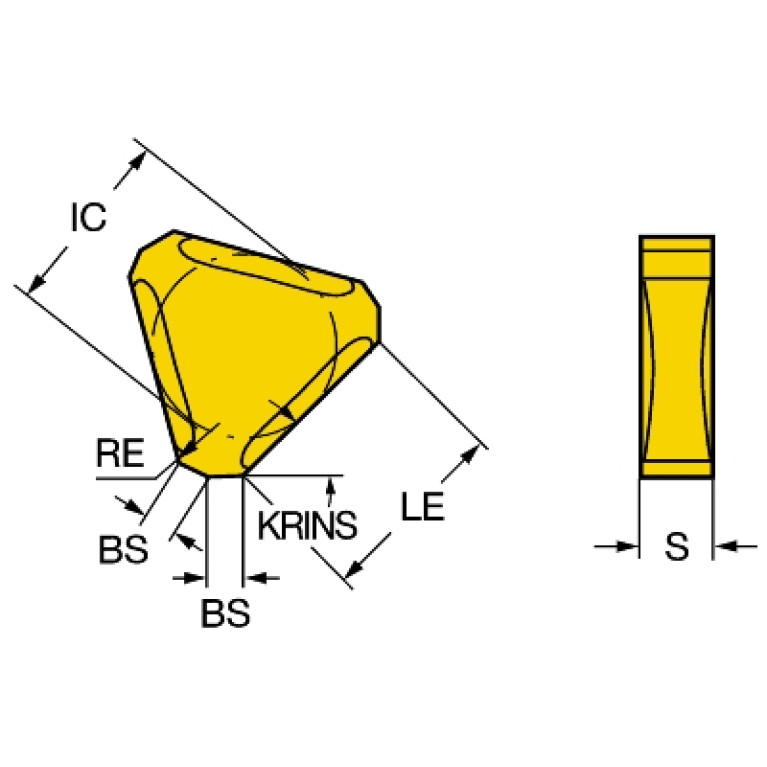

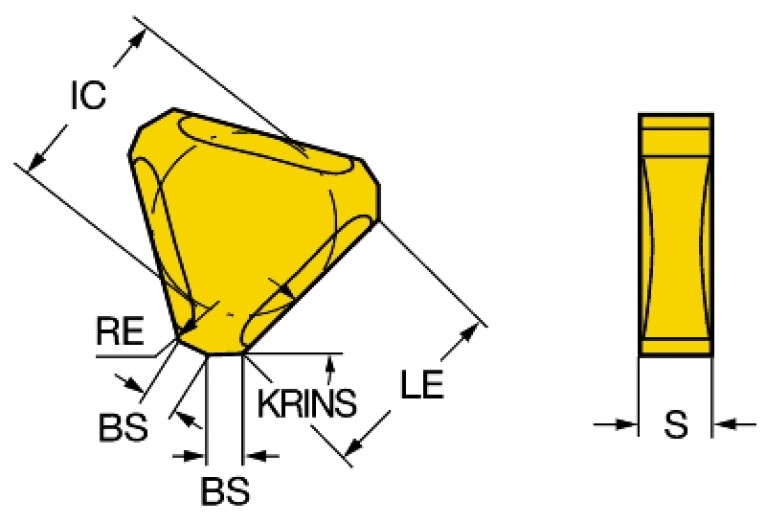

AN (Clearance angle major)

0 Degree

AS (Clearance angle wiper edge)

0 Degree

BS (Wiper edge length)

1.5 mm

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

COATN (Coating)

CVD TiCN+Al2O3+TiN

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

TN1204AN1N

EPSR (Insert included angle)

60 Degree

GAN (Insert rake angle)

12 Degree

GRDMFG (Grade manufacturers designation)

4240

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN1204$$1NAAN$$

KRINS (Cutting edge angle major)

45 Degree

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

12 mm

LOC-03 ISO

ISO$TN1204$$1NAAN$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1204AN1N

Materials

NOI (Insert index count)

RE (Corner radius)

3 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.011 kg
