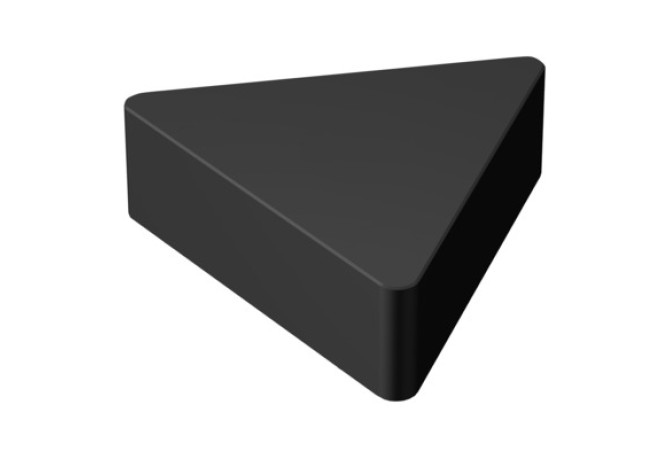

Главная Инструменты 201-01 - Triangle insert TNGN160708T01020 650

TNGN160708T01020 650

Артикул: 5753768

В наличии

0 ₽

В корзину

Описание

Характеристики

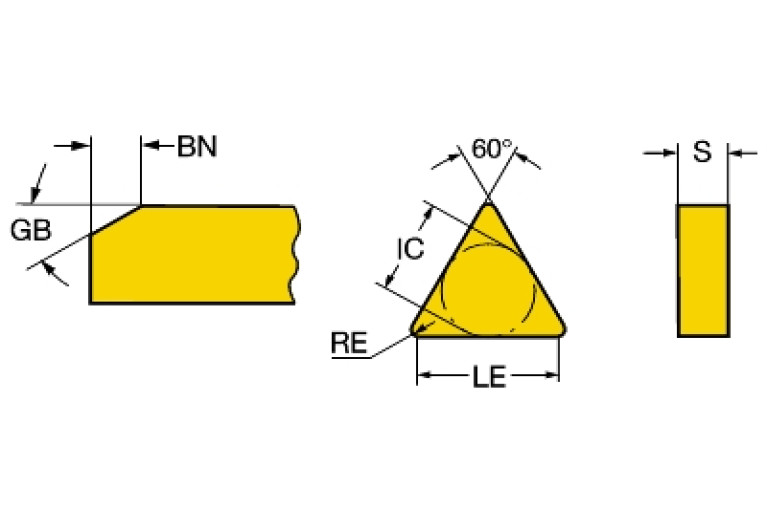

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TN1607081N

EPSR (Insert included angle)

60 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

650

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN1607081NA$$08

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

15.698 mm

LOC-03 ISO

ISO$TN1607081NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1607081N

Materials

K,S,H

MIID (Master insert identification)

TNGN160708 650

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

7.938 mm

S1 (Insert thickness total)

7.938 mm

STDDES (Standard designation)

TNGN160708

STDDESAnsi (Standard designation ANSI)

TNGN352

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.004 kg
