Главная Инструменты 201-01 - Triangle insert TNGA220408T01020 650

TNGA220408T01020 650

Артикул: 5753787

В наличии

0 ₽

В корзину

Описание

Характеристики

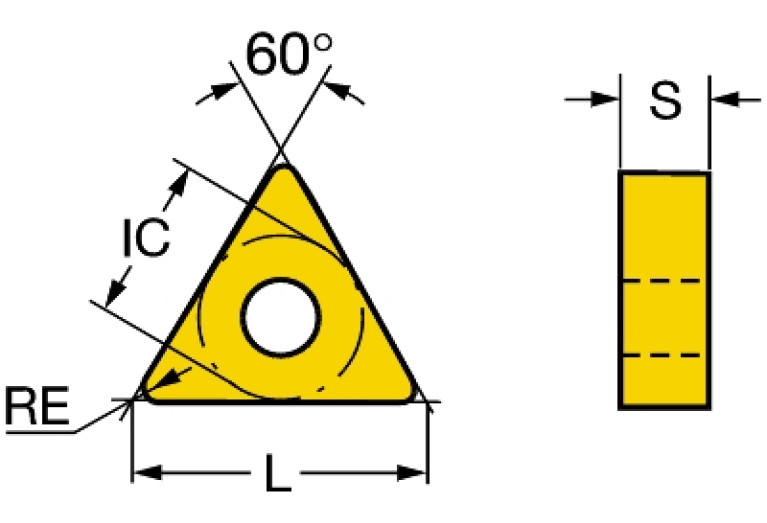

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

D1 (Fixing hole diameter)

5.156 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TN2204082N

EPSR (Insert included angle)

60 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

650

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN2204082NA$$08

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

21.197 mm

LOC-03 ISO

ISO$TN2204082NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2204082N

Materials

K,S,H

MIID (Master insert identification)

TNGA220408 650

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

TNGA220408

STDDESAnsi (Standard designation ANSI)

TNGA432

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.004 kg
