Главная Инструменты 201-01 - Triangle insert TNGA160420S01025F 7135

TNGA160420S01025F 7135

Артикул: 7586935

В наличии

0 ₽

В корзину

Описание

Характеристики

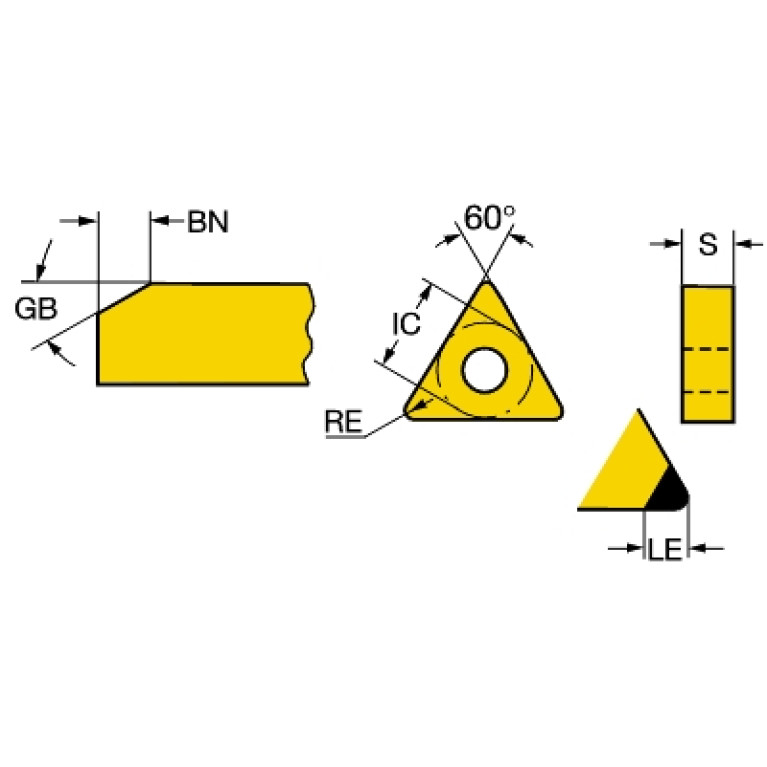

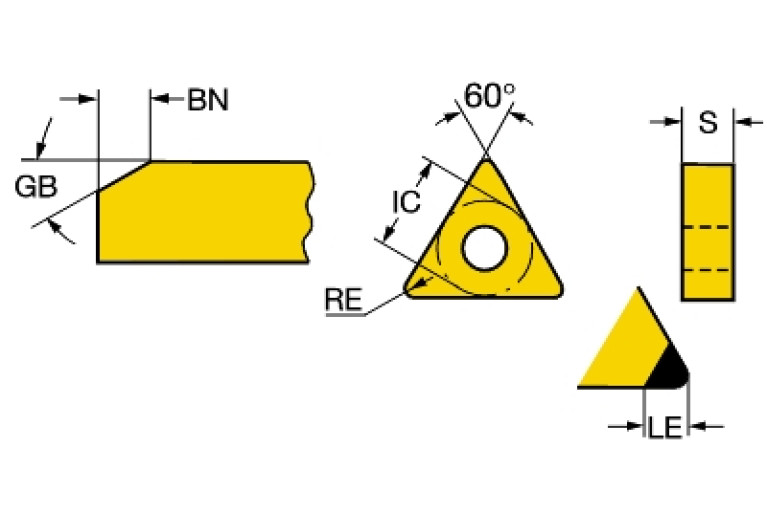

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.1 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

S - Chamfered and rounded

D1 (Fixing hole diameter)

3.81 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TN1604202N

EPSR (Insert included angle)

60 Degree

GAN (Insert rake angle)

0 Degree

GB (Face land angle)

25 Degree

GRDMFG (Grade manufacturers designation)

7135

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN1604202NA$$20

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

3.9 mm

LOC-03 ISO

ISO$TN1604202NA$$20

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604202N

Materials

MIID (Master insert identification)

TNGA160420 7135

NOI (Insert index count)

RE (Corner radius)

2 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

TNGA160420

STDDESAnsi (Standard designation ANSI)

TNGA335

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.007 kg
