Главная Инструменты 201-01 - Triangle insert TNGA160408T02520 6190

TNGA160408T02520 6190

Артикул: 5782753

В наличии

0 ₽

В корзину

Описание

Характеристики

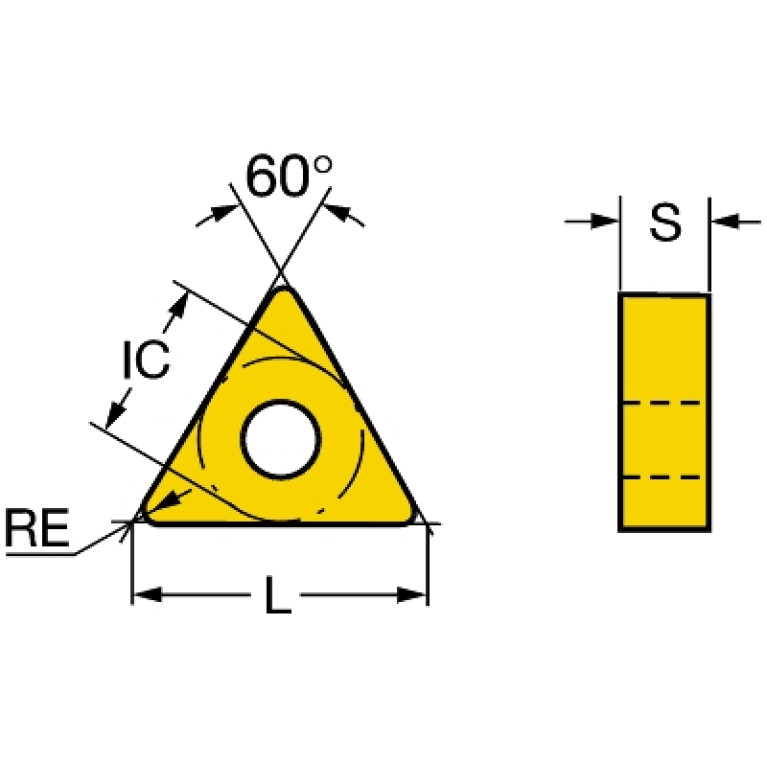

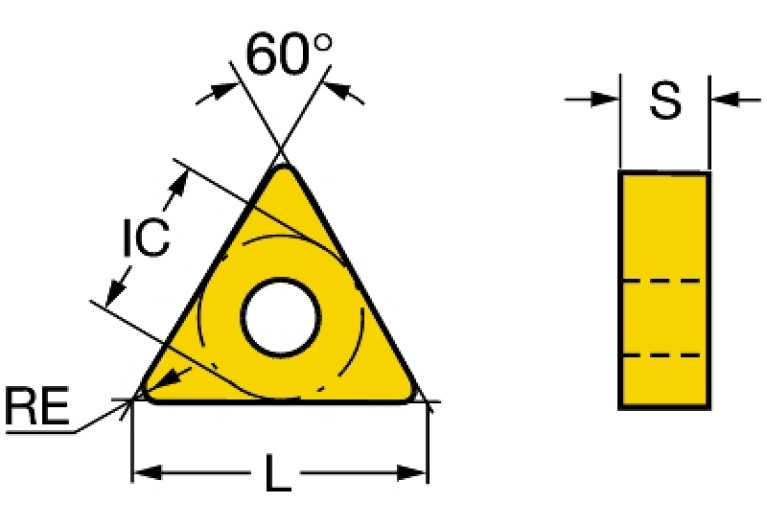

AN (Clearance angle major)

0 Degree

BN (Face land width)

0.25 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

T - Chamfered

D1 (Fixing hole diameter)

3.81 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TN1604082N

EPSR (Insert included angle)

60 Degree

GB (Face land angle)

20 Degree

GRDMFG (Grade manufacturers designation)

6190

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

9.525 mm

IFS (Insert mounting style code)

2 - With cylindrical bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TN1604082NA$$08

L (Cutting edge length)

16.498 mm

LE (Cutting edge effective length)

15.698 mm

LOC-03 ISO

ISO$TN1604082NA$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604082N

Materials

MIID (Master insert identification)

TNGA160408 6190

NOI (Insert index count)

RE (Corner radius)

0.794 mm

S (Insert thickness)

4.763 mm

S1 (Insert thickness total)

4.763 mm

STDDES (Standard designation)

TNGA160408

STDDESAnsi (Standard designation ANSI)

TNGA332

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
