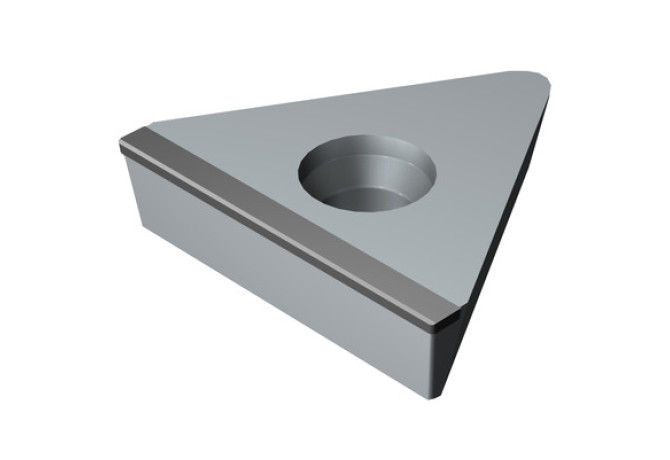

TL10-T3007F03020E 7025
TL10-T3007F03020E 7025
Артикул:
8234093
В наличии
0 ₽
Характеристики
CBMD (Chip breaker manufacturers designation)
STRAI
Delivery state valid from
12/1/2023
DIN
SV-TO300700
GRDMFG (Grade manufacturers designation)
7025
GRDPRIO (Standard designation of the grade main application)
BL

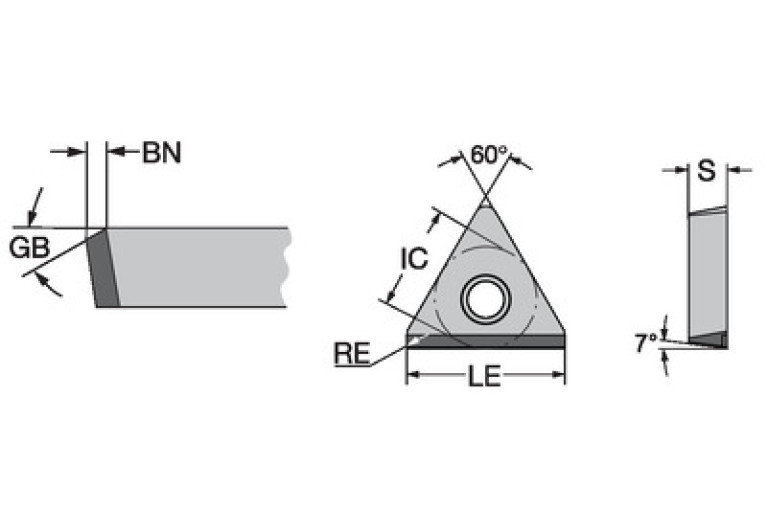

IC (Inscribed circle diameter)
19.05 mm
IFS (Insert mounting style code)
3 - Counter bore for screws with taper angle from 40° to 60°
IH (Insert hand)
N - Neutral
Interface codes
J6 / J441
ISISO (ISO property)
ISO
SV$$TO3007$$3NA$$$$
LOC-03 ISO
SV$$TO3007$$3NA$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SV-TO300700
NOI (Insert index count)
1
RE (Corner radius)
0.3 mm
S (Insert thickness)
7.938 mm
S1 (Insert thickness total)
7.938 mm
TCE (Tipped cutting edge code)
S
Working process
No working processes available
WT (Weight of item)
0.01 kg
