Главная Инструменты 201-01 - Triangle insert TFAN 22 03 PF R H10

TFAN 22 03 PF R H10

Артикул: 5752928

В наличии

0 ₽

В корзину

Описание

Характеристики

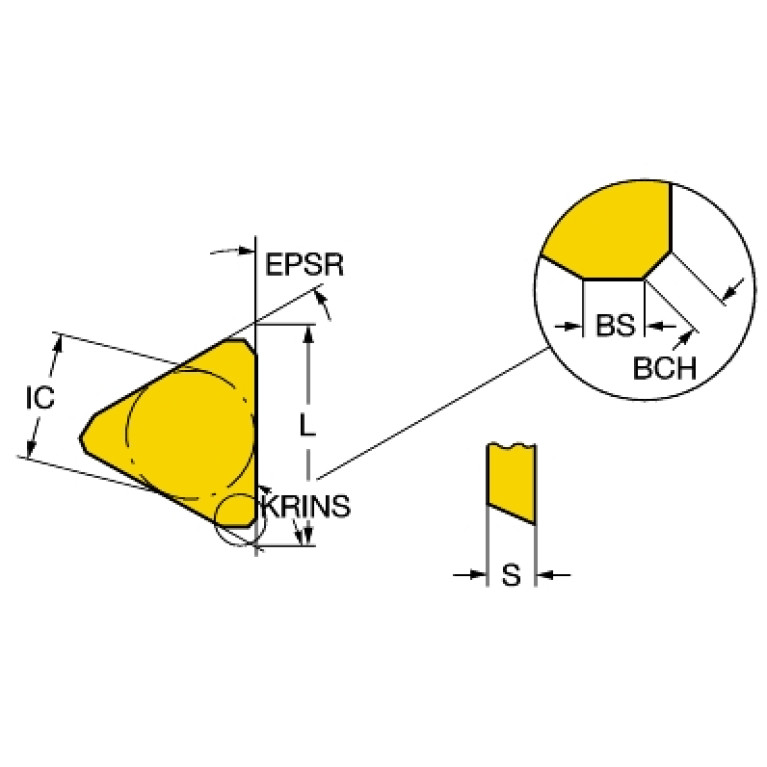

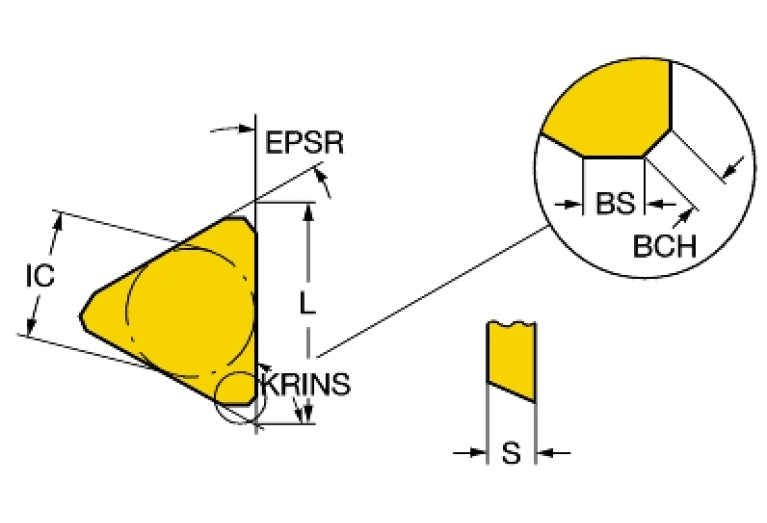

AN (Clearance angle major)

25 Degree

AS (Clearance angle wiper edge)

25 Degree

BS (Wiper edge length)

2.5 mm

CB (Chip breaker face count)

0 - Without chip breaker

CECC (Cutting edge condition code)

F - Sharpedged

Delivery state valid from

12/1/2023

DIN

TF2203PF1R

EPSR (Insert included angle)

60 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

H10

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

12.7 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

R - Right

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TF2203$$1RAPF$$

KCH (Corner chamfer angle)

45 Degree

KRINS (Cutting edge angle major)

90 Degree

L (Cutting edge length)

21.997 mm

LE (Cutting edge effective length)

18 mm

LOC-03 ISO

ISO$TF2203$$1RAPF$$

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TF2203PF1R

Materials

K,N

NOI (Insert index count)

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.008 kg
