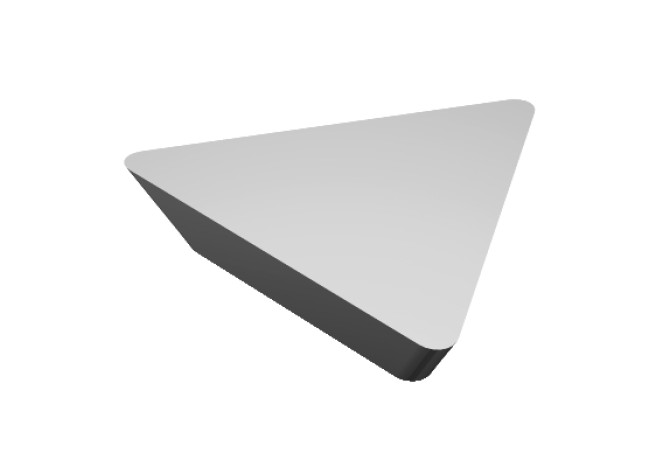

Главная Инструменты 201-01 - Triangle insert TEGN 11 03 04 H10

TEGN 11 03 04 H10

Артикул: 5752917

В наличии

0 ₽

В корзину

Описание

Характеристики

AN (Clearance angle major)

20 Degree

CB (Chip breaker face count)

0 - Without chip breaker

CBMD (Chip breaker manufacturers designation)

EGN

CECC (Cutting edge condition code)

F - Sharpedged

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

TE1103041N

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

H10

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

6.35 mm

IFS (Insert mounting style code)

1 - Without bore

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

ISO$TE1103041NA$$04

L (Cutting edge length)

10.999 mm

LE (Cutting edge effective length)

10.599 mm

LOC-03 ISO

ISO$TE1103041NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TE1103041N

Materials

MIID (Master insert identification)

TEGN110304 H10

NOI (Insert index count)

RE (Corner radius)

0.397 mm

S (Insert thickness)

3.175 mm

S1 (Insert thickness total)

3.175 mm

STDDES (Standard designation)

TEGN110304

STDDESAnsi (Standard designation ANSI)

TEGN221

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.002 kg
